Estimated Lead Time: 6 – 8 Weeks.
Manufacturer : SICK Sensors
Product Type : Pressure Sensors

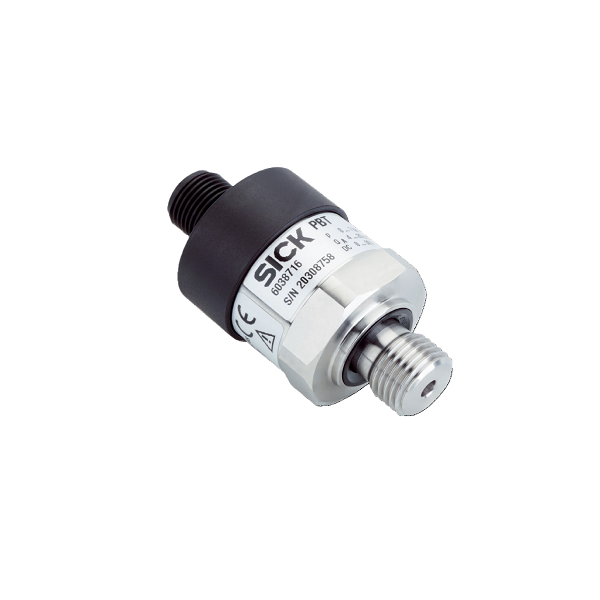

Model : PBT-RB400SG1MSNAMA0Z
Part Number : 6067301
Medium : Liquid, gaseous
Pressure type : Gauge pressure
Pressure unit : bar
Measuring range : 0 bar … 400 bar
Process temperature : 0 °C … +80 °C
Maximum ohmic load RA
4 mA … 20 mA, 2-wire (RA ≤ (L+ – 10 V) / 0.02 A [Ohm])
0 V … 5 V, 3-wire (RA > 5 kOhm)
0 V … 10 V, 3-wire (RA > 10 kOhm)
Output signal : 4 mA … 20 mA, 2-wire
Specialty : Without
Process connection : G ¼ A according to DIN 3852-E
Wetted parts
Pressure Connection: stainless steel 316L
Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar … 10 bar rel stainless steel 13-8 PH)
Internal transmission fluid : Silicone oil (only with pressure ranges < 0 bar ... 10 bar and ≤ 0 bar abs ... 25 bar abs) Pressure port : 0.6 mm pressure port Housing material : Stainless steel Connection type : M12 round connector x 1, 4-pin Supply voltage : 8 V DC ... 30 V DC Power consumption Signal current (max. 25 mA) for current output Max. 8 mA for voltage output signal Electrical safety Overvoltage protection: 32 V DC, 36 V DC with 4 mA ... 20 mA Short-circuit protection: QA towards M Reverse polarity protection: L+ to M Protection class: III Isolation voltage : 500 V DC CE-conformity Pressure equipment directive: 2014/68/EU EMC directive: 2014/30/EU, EN 61 326-2-3 Weight sensor : Approx. 80 g Shipping Weight: 1 kg
