Estimated Lead Time : 6 – 8 weeks.

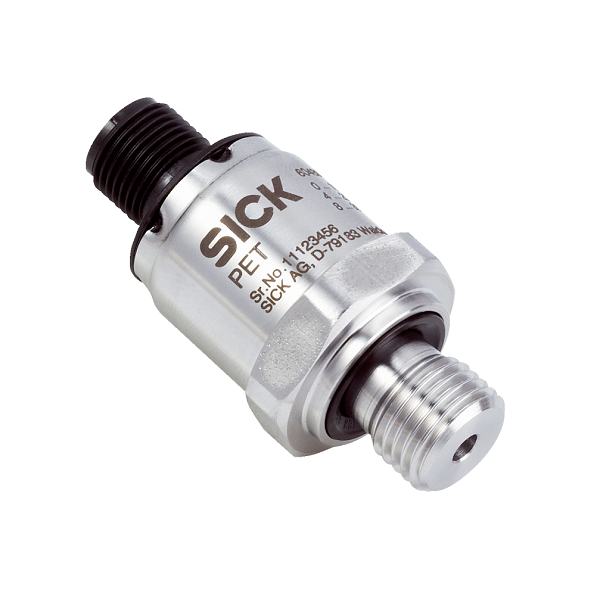

Manufacturer : SICK Sensors
Part Number : PET-1RB016G1NSVMC
Pressure type : Gauge pressure
Measuring range : 0 bar … 16 bar
Process temperature : –30 °C … +100 °C
Output signal : 0 V … 10 V, 3-wire
Pieces per package : 50 pieces
Process connection : G ¼ A according to DIN 3852-E
Seal : NBR
Wetted parts : Stainless steel, stainless steel 13-8 PH
Pressure port : 3.5 mm Standard
Housing material : Stainless steel 316L, PBT GF30
Connection type : M12 round connector x 1, 4-pin
Enclosure rating : IP67, for round connector (IEC 60529)
Supply voltage : 14 V DC … 30 V DC
Maximum ohmic load : > QA, max / 1 mA [ohm] for current output signal
Maximum power consumption : 5 mA
Initialization time : 15 ms
Protection class : III
Isolation voltage : 750 V DC
Overvoltage protection : 36 V DC
Short-circuit protection Output : QA towards M
Reverse polarity protection : L+towards M
CE-conformity : 2004/108/EC, EN 61326-1 emission (group 1, class B) and interference immunity (industrial application) and pressure equipment directive 97/23/EC
RoHS certificate : yes
Service life : Minimum 10 Mio. load cycles
MTTF > : 100 years
Shipping Weight : 1 kg
