Estimated Lead Time : 6 – 8 weeks

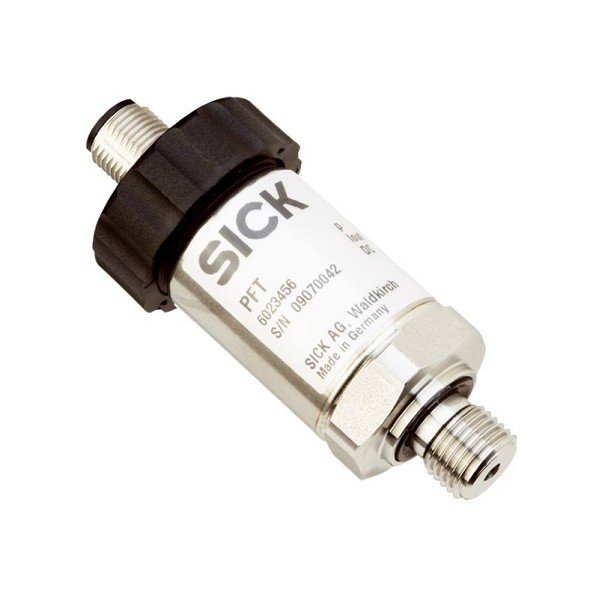

Manufacturer : SICK Sensors
Part Number : PFT-SRBX10SG1SEAAMSSZ
Medium : Liquid, gaseous
Pressure type : Gauge pressure
Pressure unit : bar
Measuring range : 0 bar … 0.1 bar
Process temperature : –40 °C … +125 °C
Maximum ohmic load RA :
4 mA … 20 mA, 2-wire (RA ≤ (L+ – 10 V) / 0.02 A [Ohm])
0 V … 5 V, 3-wire (RA > 5 kOhm)
0 V … 10 V, 3-wire (RA > 10 kOhm)
Output signal : 4 mA … 20 mA, 2-wire
Specialty : Without
Process connection : G ¼ A according to DIN 3852-E
Wetted parts : Standard memrane: Stainless steel 1.4571, stainless steel 1.4534 for measuring ranges > 25 bar
Internal transmission fluid : Synthetic oil (Not available for version with standard membrane for pressure ranges > 25 bar)
Pressure port : Standard
Housing material : Stainless steel 1.4571
Connection type : M12 round connector x 1, 4-pin
Supply voltage : 10 V DC … 30 V DC
Electrical safety :
Overvoltage protection: 36 V DC
Short-circuit protection: QA towards M
Reverse polarity protection: L+ to M
Protection class: III
Dielectric strength : 500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even in the event of a fault)
CE-conformity :
Pressure equipment directive: 2014/68/EU
EMC directive: 2004/108/EC, EN 61326-2-3
Weight sensor : Approx. 220 g
Shipping Weight : 2 kg
