Estimated Lead Time : 1 – 10 Working days.
Manufacturer : Pro-Face

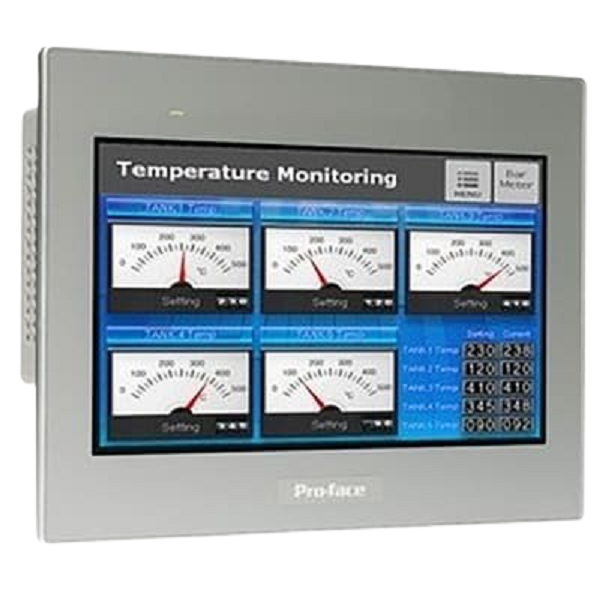

Part Number : PFXST6500WADE
Family : HMI
Series : ST6000 Series
Size : 10″ Wide
Model : PFXST6500WADE
Global Code : PFXST6500WADE
Product Features : 10″ DC Analog
Display type : TFT Color LCD
Display size : 10.1″ Wide
Resolution : 1,024 x 600 pixels (WSVGA)
Effective display area : W222.72 x H125.28 mm [W8.77 x H4.93 in.]
Display colors : 16 million colors
Backlight : White LED
Backlight service life : 50,000 hrs. or more
Brightness control : 16 Levels (Adjusted with touch panel or software)
Touch panel type : Resistive Film (analog, single-touch)
Touch panel resolution : 1,024 x 1,024
Touch panel lifetime : 1,000,000 times or more
Rated input voltage : 24 Vdc
Input voltage limits : 19.2 to 28.8 Vdc
Allowable voltage drop : 10 ms or less
In-rush current : 30 A or less
Grounding : Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country’s applicable standard. (Same for FG and SG terminals)
Cooling method : Natural air circulation
External dimensions : W273 x H203 x D47 mm [W10.75 x H7.99 x D1.85 in.]
Panel cut-out dimensions : W255 x H185 mm [W10.03 x H7.28 in.] | Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*2
Weight : 1.3 kg [2.87 lb] or less
Shipping weight : 8 Kg
