Estimated Lead Time : 4 – 6 weeks.
Manufacturer: Scheinder Electric
Part number: PRA10202

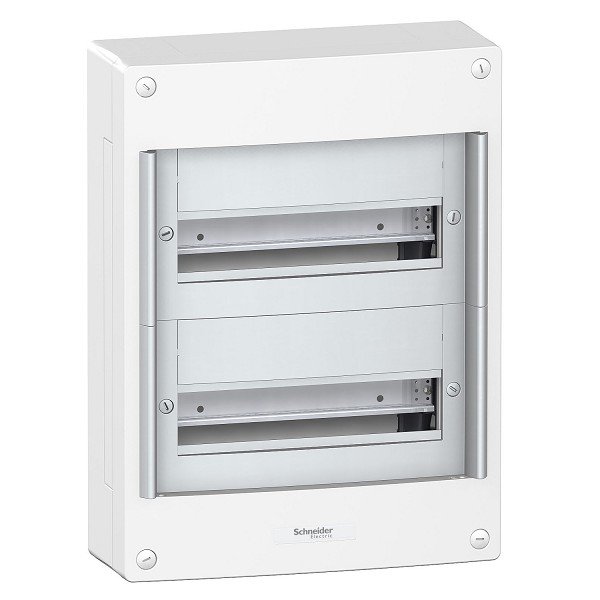

Pragma surface enclosure – IP30 – 2 x 13 modules – without door
Main
Range : Pragma
Product or component type : Enclosure
Enclosure type : Distribution enclosure
Width : 336 mm outside:
Height : 450 mm outside:
Depth : 123 mm outside:
Nb of 18 mm modules per row : 13
Nb of horizontal rows : 2
electrical insulation class
Class II
Double insulation
Provided equipment
1 x identification label
1 x marking kit
1 x terminal block
1 x blanking plate strip
Type of door : Without
Complementary
enclosure mounting : Surface
9 mm pitches : 26
Total number of 18 mm modules : 26
Power dissipation in W : 40 W
[In] rated current : 63 A
[Ui] rated insulation voltage : 400 V
Type of rail : DIN
Mounting plate description : Without mounting plate
cable entry
Removable plates
Cable or tube
Trunking
Cut-out plates
Number of terminal blocks : 1 earth (Quick) with 24 outgoers
Distribution block outgoers
3 x 25 mm² for earth
21 x 4 mm² for earth
Enclosure material
Back part: technoplastic
Front face: technoplastic
Colour
Enclosure: white (RAL 9016)
Front face: grey (RAL 7004)
Targeted country
Denmark
Spain
Embedding depth : 0 mm
Internal depth : 95 mm
Weight : 2.74 Kg
Shipping Weight : 3.5 Kg
