Estimated Lead Time : 4 – 6 weeks.
Manufacturer: Scheinder Electric
Part number: RHK411F

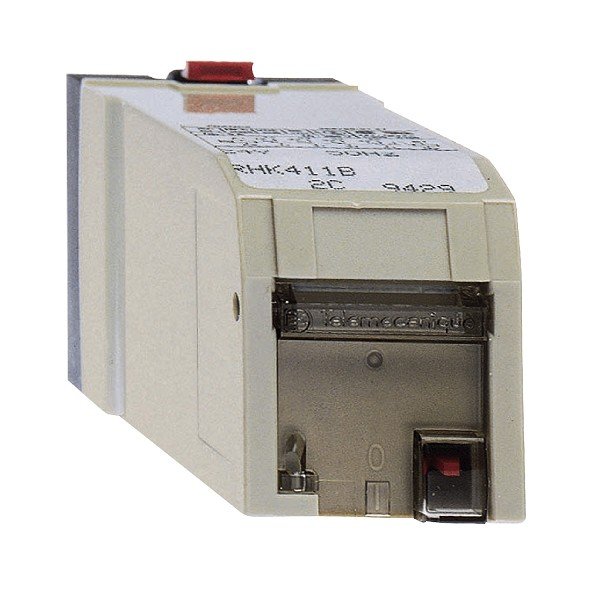

plug-in relay – Zelio RHK – latching – 4 C/O – 110 V AC 50 Hz – 5 A
Main
Range of product : Harmony Relay
Product or component type : Plug-in relay
device short name : RHK
contacts type and composition : 4 C/O
contact operation
Latching
Standard
[Uc] control circuit voltage : 110 V AC 50 Hz
[Ithe] conventional enclosed thermal current : 5 A 40 °C
Status LED : Without
control type : Manual control
Coil interference suppression : Without
Complementary
[Ui] rated insulation voltage : 250 V
Test levels : Level A group mounting
Operating position : Any position
Minimum switching capacity
150 mVA at 10 mA
150 mVA, 1 V
Contact bounce time : <= 10 ms Maximum voltage drop : <100 V for 3 A at 24 V Average resistance : 30 mOhm at 20 °C Average coil consumption in VA 6 (inrush) on coil 1 1.3 (holding) on coil 2 2.5 (inrush) on coil 2 3.5 (holding) on coil 1 Control circuit voltage limits : 0.8...1.1 Uc conforming to IEC 60255 Drop-out voltage threshold : 0.15...0.5 Uc Cos phi 0.6 (inrush) 0.7 (holding) Mechanical durability : 10000000 cycles maximum operating rate : 2 cyc/mn Operating time 5...17 ms between energisation of coil and closing of NO contact at 20 °C 8...16 ms between energisation of trip coil and closing of NC contact at 20 °C 1...3 ms for energisation/de-energisation 0.5...6 ms for de-energisation/energisation Minimum pulse duration : 50 ms CAD overall width : 33 mm CAD overall height : 43 mm CAD overall depth : 90 mm Terminals description ISO n°1 (21-22-24)OC (41-42-44)OC (31-32-34)OC (11-12-14)OC (B1-B2)CO (A1-A2)CO Net weight : 0.14 kg Compatibility code : RHK Shipping Weight : 1 Kg
