Estimated Lead Time : 8 – 12 weeks.
Manufacturer : Foxboro ( by Schneider Electric )
Product No. : RTT20-I1WRPFA

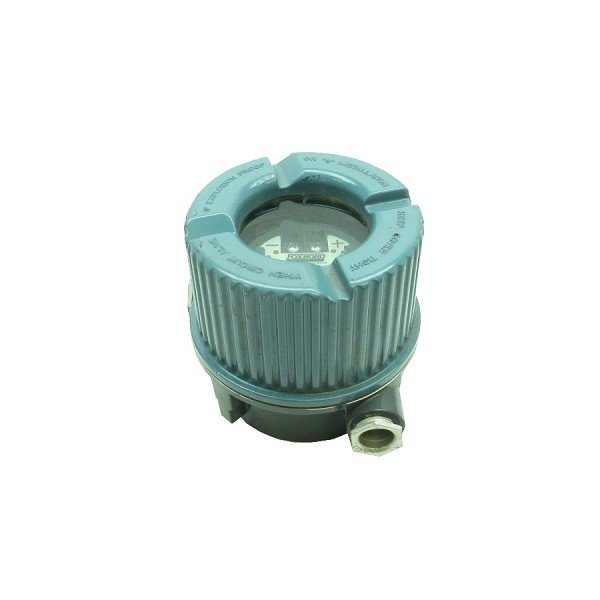

Product type : RTT20 I/A Series Intelligent Temperature Transmitter
Transmitter with Integrally Mounted Bare Sensor
Output Signal and Communication Protocol : I = 4 to 20 mA only; no Remote Communication (a)
Input Configuration : 1 = Single Input Channe
Package Configuration and Housing Material (Integrally Mounted Bare Sensor) : W = Bare Sensor Mounted to Aluminum Housing; 1/2 NPT Conduit Threads (Explosionproof)
Sensor Length : R = 12 in (305 mm)
Measurement Input Type (Software Selectable) : P = RTD, Platinum, 100 ?, SAMA
Electrical Safety (Also see “Electrical Safety Specifications” section for further details) : FA = FM, Intrinsically Safe, ia
Shipping weight : 8 Kg
