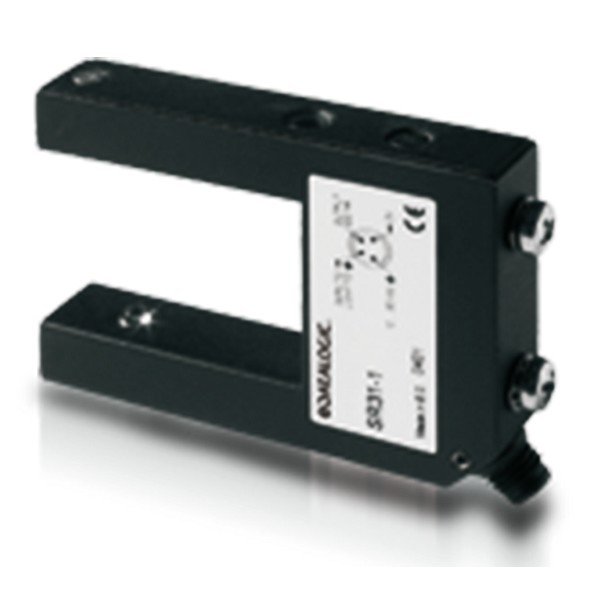

The SR31 series is composed of fork sensors with infrared LED emission, distinguished by an elevated 10kHz switching frequency and by a sturdy and compact metal housing.The detection sensitivity is adjusted by means of a trimmer.
The dark/Iight operating mode is configured according to the connection.
The series includes M8 connector versions with NPN output, or PNP output; cable versions present both NPN/PNP outputs.
The SR31 sensors have e 30 mm wide and 42 mm deep fork These sensors are suitable for detecting opaque Iabels on a transparent support, to control material presence and continuity, to detect synchronism pulses on toothed or holed wheels, or as on-off edge guide.
Infrared LED emission
Sensitivity trimmer adjustment
Elevated switching frequency
Metal housing with wide fork
APPLICATIONS: Labeling machines, Packaging and bottling lines, Assembling lines.
Shipping Weight: 1 Kg
