Estimated Lead Time : 4-8 Weeks
Manufacturer: Schmersal
Standards: EN IEC 60947-5-1

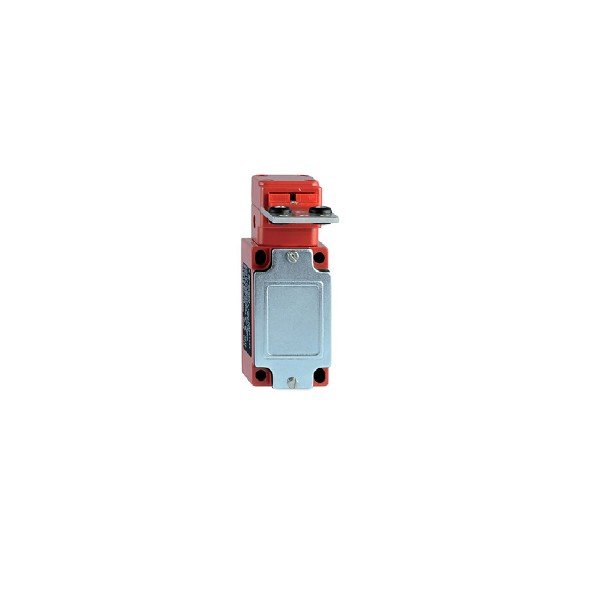

BOF/HIS.2: Telescopic actuator, rear-side fixing
Working principle: mechanical
Housing material: Aluminium / chromated steel
Housing coating material: painted
Material of the cylinder lock: Steel
Colour of the housing: Red
Colour of the key: Silver
Colour of key head: Silver
Number of actuating directions: 4
Number of keys: 1
Mechanical life, minimum: 100,000 Operations
Holding force: 1,750 N
Latching force: 5 N
Key number: 101
Length: 90 mm
Width: 40 mm
Height: 103 mm
Degree of protection: IP65
Ambient temperature: -25 … +70 °C
Storage and transport temperature, minimum: -40 °C
Storage and transport temperature, maximum: +80 °C
Restistance to shock: 30 g / 18 ms
Resistant to vibration: Resistance to vibration: 15 g / 10…200 Hz
Note (applications): sliding safety guard
removable guard
hinged safety guard
Shipping Weight: 1 Kg
