Estimated Lead Time : 6 – 8 weeks.
Manufacturer : Honeywell

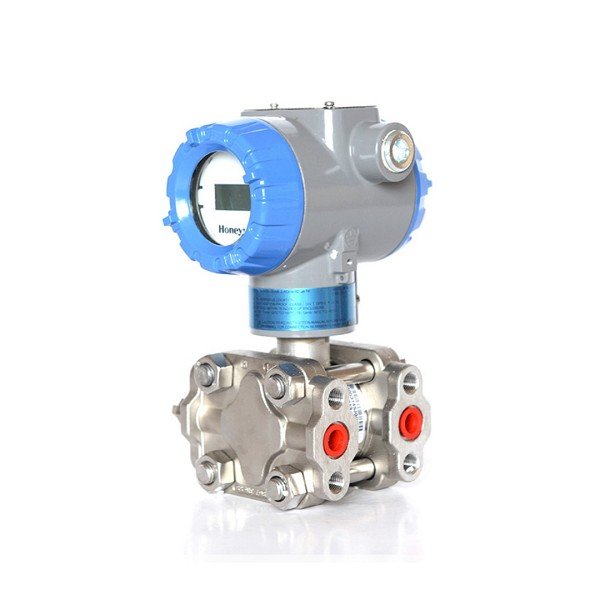

Product No. : STD820-E2HC4AS-1-A-AHE-11S-B-11A2-OX-F1-0000
Product type : Differential Pressure Transmitter
Model : STD810
URL : 400/(1000)
LRL : -400/(-1000)
Max Span : 400/(1000)
Min Span : 1.0 (2.5)
Units : H2O (mbar)
Process head material : E =316 Stainless steel
Diaphragm material : E = 316L Stainless steel
Fill fluid : 2 = Fluorinated Oil CTFE
Process connection : H
Size : 1/2″ NPT female
Material : Match head & head bolt materials selections
Bolt/nut materials : C = Carbon steel
Vent/drain type : 4
Head type : Dual ended
Vent type : Standard vent
Location : End
Vent materials : Matches head material
Gasket material : A = Teflon® or PTFE (Glass Filled)
Static pressure : S = Standard Static Pressure – 4500 psig (310 bar) except STD810: 50 psi (3.5 bar)
Meter body : 1 = Standard
Connection orientation : 1 = High Side Left, Low Side Right2 / Std Head Orientation
Approvals : A = FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
Electronic housing material & connection type : A
Material : Polyester Powder Coated Aluminum
Connection : 1/2 NPT
Lightning protection : –
Output/protocol : H
Analog output : 4-20mA dc
Protocol : HART Protocol
Customer interface selection : E
Indicator : Advanced
Ext zero, span and config button : Yes
Language : EN, GR, FR, IT,SP, RU, TU
Application software : 1 = Standard diagnostics
Output limit, failsafe & write protect settings : 1
Write protect : Disabled
Full mode : High> 21.0mAdc
High and low output limits : Honeywell Std (3.8 – 20.8 mAdc)
General cofiguration : S = Factory Standard
Accuracy and calibration : B
Accuracy : Standard
Calibrated range : Custom (Unit Data Required)
Calibration Qty : Single calibration
Mounting bracket : 1
Type : Angel bracket
Material : Carbon steel
Customer tag : 1 = One Wired Stainless Steel Tag
Unassembled conduit plugs & adapters : A2 = 1/2 NPT Male to 3/4 NPT Female 316 SS Certified Conduit Adapter
Certifications & warranty
OX = Cert Clean for O2 or CL2 service per ASTM G93
F1 = Calibration Test Report & Certificate of Conformance (F3399)
Factory : Factory identification
Weight : 4 kg
Shipping weight : 8 Kg
