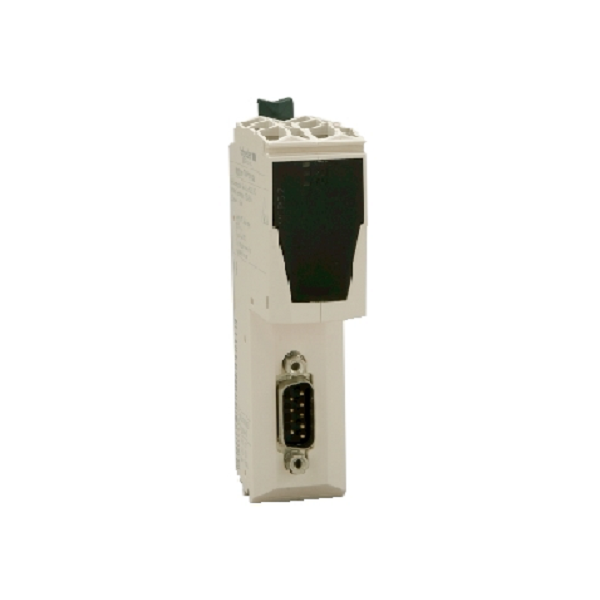

TM5PCRS2 Schneider Electric ASCII serial link communication module, Modicon TM5, modbus/ASCII PCI RS232

Estimated Lead Time : 1 – 10 working days.

Manufacturer : Schneider Electric

ASCII serial link communication module, Modicon TM5, modbus/ASCII PCI RS232

Range of Product :Modicon TM5

Product or Component Type :ASCII serial link communication module

Physical interface :RS232

Complementary

Range Compatibility :Modicon LMC058 | Modicon M258

Product Compatibility :Motion controller | Logic controller

Integrated connection type :1 isolated serial link, male SUB-D 9 Modbus ASCII RS232), 115.2 kbit/s max

Maximum power dissipation in W :0.33 W

Marking :CE

Product Weight :0.11 lb(US) (0.05 kg)

Environment

Standards :CSA C22.2 No 213 | CSA C22.2 No 142 | IEC 61131-2 | UL 508

Product Certifications :C-tick | GOST-R | cULus | CSA

Ambient air temperature for operation :32…131 °F (0…55 °C) without derating horizontal installation) | 32…140 °F (0…60 °C) with derating factor horizontal installation) | 32…122 °F (0…50 °C) vertical installation)

Ambient Air Temperature for Storage :-13…158 °F (-25…70 °C)

Relative Humidity :5…95 % without condensation

IP degree of protection : IP20IEC 61131-2

Pollution degree :2 IEC 60664

Operating altitude :0…6561.68 ft (0…2000 m)

Storage altitude :0.00…9842.52 ft (0…3000 m)

Vibration resistance :1 gn 8.4…150 Hz DIN rail | 3.5 mm 5…8.4 Hz DIN rail

Shock resistance :15 gn 11 ms

Resistance to electrostatic discharge :4 kV on contact EN/IEC 61000-4-2 | 8 kV in air EN/IEC 61000-4-2

Resistance to electromagnetic fields :0.91 V/m (1 V/m) 2…2.7 GHz EN/IEC 61000-4-3 | 9.14 V/m (10 V/m) 80 MHz…2 GHz EN/IEC 61000-4-3

Resistance to fast transients :1 kV EN/IEC 61000-4-4 I/O) | 1 kV EN/IEC 61000-4-4 shielded cable) | 2 kV EN/IEC 61000-4-4 power lines)

Surge withstand : 0.5 kV differential mode EN/IEC 61000-4-5 | 1 kV common mode EN/IEC 61000-4-5

Electromagnetic compatibility : EN/IEC 61000-4-6

Disturbance radiated/conducted : CISPR 11

Ordering and shipping details

Category :22532-M258 PLC

Discount Schedule :PC12

GTIN :3595864074399

Returnability :No

Country of origin :AT

Packing Units

Unit Type of Package 1 :PCE

Number of Units in Package 1 :1

Package 1 Height :1.22 in (3.100 cm)

Package 1 Width :2.36 in (6.000 cm)

Package 1 Length :4.09 in (10.400 cm)

Package 1 Weight :2.40 oz (68.000 g)

Unit Type of Package 2 :S02

Number of Units in Package 2 :48

Package 2 Height :5.91 in (15.000 cm)

Package 2 Width :11.81 in (30.000 cm)

Package 2 Length :15.75 in (40.000 cm)

Package 2 Weight :7.20 lb(US) (3.264 kg)

Shipping weight : 1 Kg
