Estimated Lead Time : 4 – 6 Weeks.

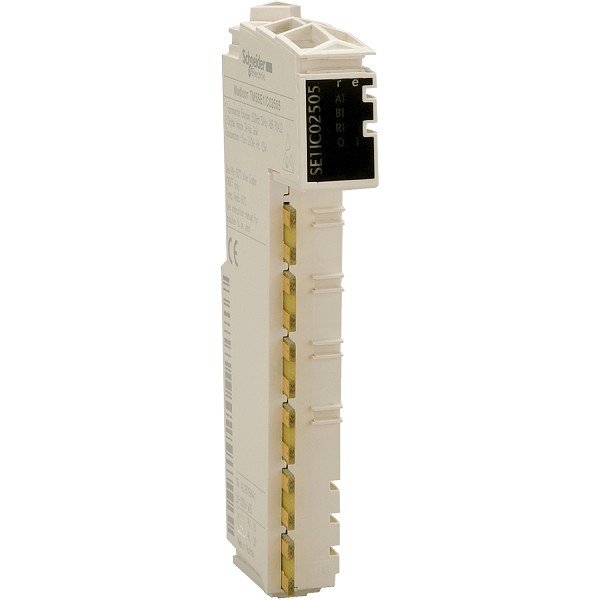

Manufacturer : Schneider Electric
Range of product : Modicon TM5
Product or component type : Counter module
Product specific application :
Downcounting
Frequency generator
Upcounting
Period measurement
Frequency meter
Axis following with encoder
Function of module :
2 x 24 V DC auxiliary inputs
24 V DC encoder power supply
Discrete input number : 1
Counting frequency : 100 kHz
Encoder type : 1 incremental encoder
Range compatibility :
Modicon LMC058
Modicon M258
Product compatibility :
Logic controller
Motion controller
Counter inputs resolution : 16 bits/32 bits
Maximum cycle time : 2 ms
Input compatibility : 1 incremental encoder (24 V)
Isolation : 500 Vrms AC insulation between channel and bus
Discrete input logic : Sink
Discrete input voltage : 24 V DC
Discrete input current : 3.3 mA at 24 V
Input resistance : 7.19 kOhm
Current consumption :
2 mA at 5 V DC bus
58 mA at 24 V DC input/output
Maximum power dissipation in W : 1.41 W
Marking : CE
Product weight : 0.025 kg
Shipping weight : 1 kg
