Estimated Lead Time : 1 – 10 Working Days
Manufacturer : ABB
Product No. : V18345-1027421001

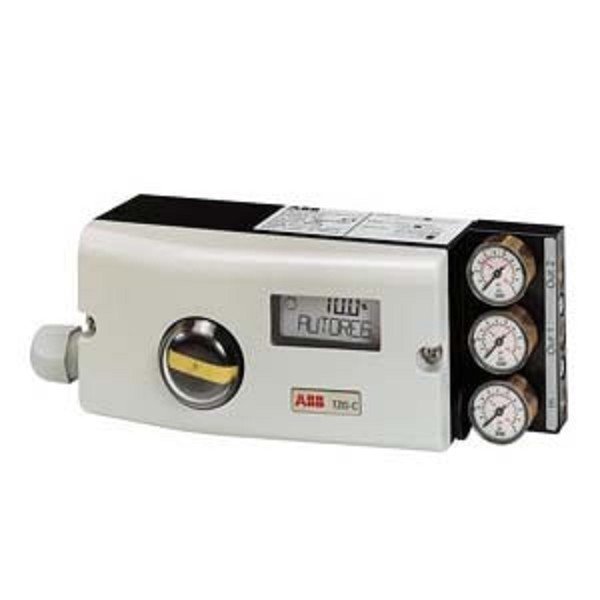

V18345 – TZIDC Electro-Pneumatic Positioner
1-Case / Mounting : Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting
0- Electro-Pneumatic Positioner TZIDC = intelligent, configurable with indicator and operator panel
2-Input / communication port : Input 4…20 mA, two-wire with connector plug for LKS adapter and FSK module for HART communication
7- Explosion protection : ATEX Ex II 2 G EEx ia II C T6
4- Output / safe position (in case of an electrical power failure) : Double acting, fail safe
2-Connections : Cable: Thread 1/2-14 NPT, Air pipe: Thread 1/4-18 NPT
1- Option modules for analog or digital position feedback: without
0- Optional mechanical kit for digital position feedback
0-Electro-Pneumatic Positioner TZIDC: intelligent, configurable with indicator and operator panel Optional mechanical kit for digit
1-Optional mechanical kit for digital position feedback : Mechanical kit for digital position feedback, with proximity switches SJ2-SN (NC or logical 1)
Output signal (two-wire technology) Nominal range : 4 … 20 mA
Digital input : Control voltage 0 … 5 V DC logical switching state “0” 11 … 30 V DC logical switching state “1”
Digital output (control circuit to DIN 19234/NAMUR) Supply voltage : 5 … 11 V DC
Supply pressure : 1.4 … 6 bar (20 … 90 psi)
Air consumption : < 0.03 kg/h / 0.015 scfm (independent of supply pressure) Housing Material/Protections : Aluminum, protection class IP 65 / NEMA 4X Surface/color : Electrostatic dipping varnish with epoxy resin, stove-hardened. Case varnished black, RAL 9005, matte, housing cover Pantone 420. Pneumatic connections : Threads G 1/4 or 1/4-18 NPT Weight : 1.7 Kg Shipping Weight : 3 Kg
