Estimated Lead Time: 6 – 8 Weeks.

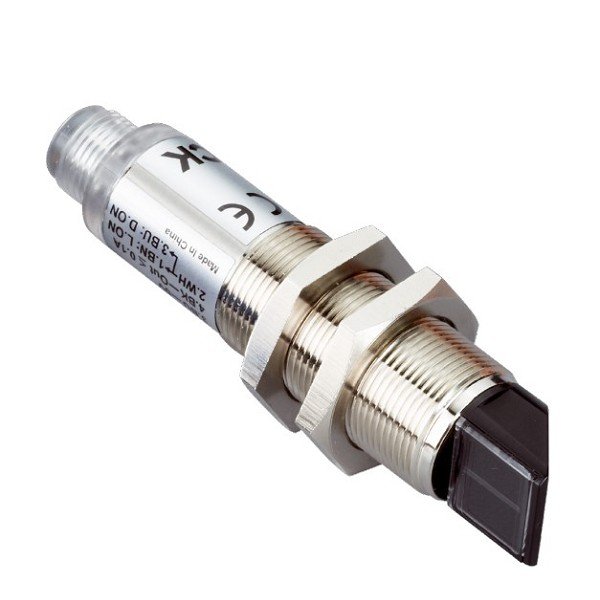

Manufacturer: SICK Sensors
Product Type: Cylindrical Photoelectric Sensor
Model: VTE180-2P41184
Part Number: 6043822
Detailed Technical Data:
Features:
Functional principle: Photoelectric proximity sensor
Functional principle detail: Energetic
Dimensions (W x H x D): 18 mm x 18 mm x 76.5 mm
Housing design (light emission): Cylindrical
Housing length: 76.5 mm
Optical axis: Radial
Sensing range max.: 1 mm … 900 mm
Sensing range: 1 mm … 650 mm
Focus: Approx. 1.2°
Type of light: Visible red light
Light source: LED
Light spot size (distance): Ø 30 mm (800 mm)
Angle of dispersion: Approx. 1.2°
Wave length: 645 nm
Adjustment: Potentiometer, 270° (Sensing range)
Special features: Average service life: 100,000 h at TU = +25 °C
Mechanics/Electronics:
Supply voltage: 10 V DC … 30 V DC
Ripple: ± 10%
Current consumption: 30 mA
Switching output: PNP
Switching mode: Light/dark switching
Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
Output current Imax.: ≤ 100 mA
Response time: ≤ 0.5 ms
Switching frequency: 1,000 Hz
Connection type: Cable, 4-wire, 2 m
Cable material: PVC
Conductor cross section: 0.18 mm²
Cable diameter: Ø 3.8 mm
Circuit protection: A, B, D
Protection class: III
Weight: 95 g
Shipping Weight: 1 kg
