Estimated Lead Time: 6 – 8 Weeks
Manufacturer : SICK Sensors

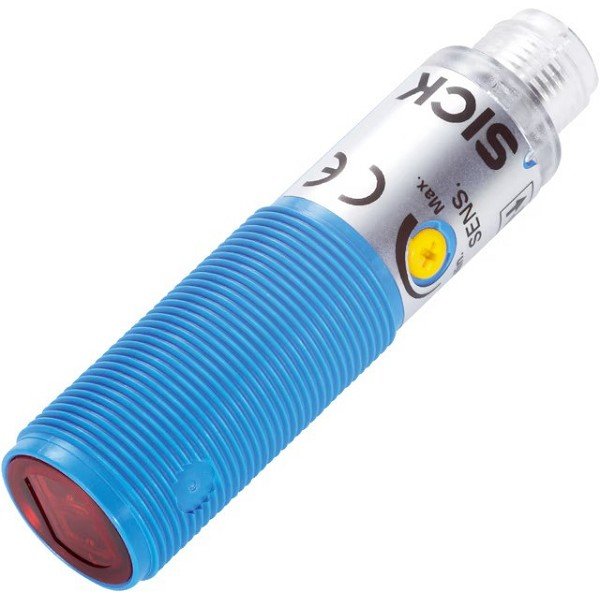

Part Number : VTE180-2P42487
Functional principle : Photoelectric proximity sensor
Functional principle detail : Energetic
Dimensions (W x H x D) : 18 mm x 18 mm x 69.8 mm
Housing design (light emission) : Cylindrical
Housing length : 69.8 mm
Thread diameter (housing) : M18 x 1
Optical axis : Axial
Sensing range max. : 1 mm … 1,100 mm
Sensing range : 1 mm … 800 mm
Focus : Approx. 1.2°
Type of light : Visible red light
Light source : LED
Light spot size (distance) : Ø 30 mm (800 mm)
Angle of dispersion : Approx. 1.2°
Wave length : 645 nm
Adjustment : Potentiometer, 270° (Sensing range)
Supply voltage : 10 V DC … 30 V DC 1)
Ripple : ± 10 % 2)
Current consumption : 30 mA 3)
Switching output : PNP 4)
Switching mode : Light/dark switching 4)
Switching mode selector : Selectable via L/D control cable
Signal voltage PNP HIGH/LOW : Approx. VS – 1.8 V / 0 V
Output current Imax. : ≤ 100 mA
Response time : ≤ 0.5 ms 5)
Switching frequency : 1,000 Hz 6)
Connection type : Male connector M12, 4-pin
Protection class : III
Weight : 18 g
Shipping Weight: 1 kg
