Estimated Lead Time : 6 – 8 Weeks
Manufacturer : SICK Sensors

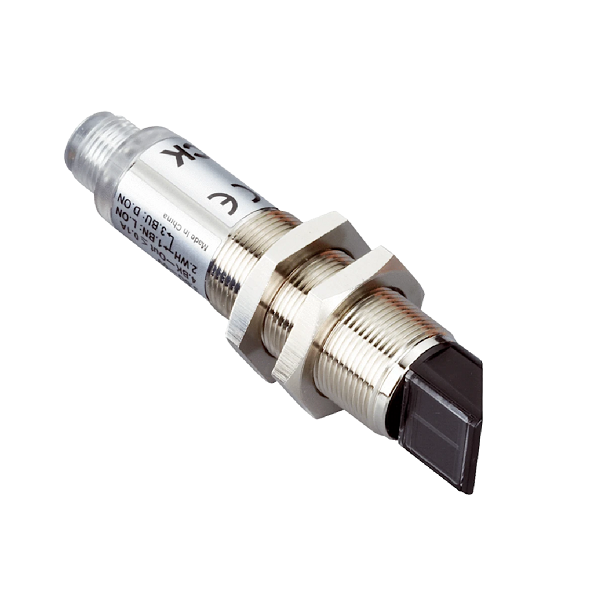

Part Number : VTF180-2F32414
Functional principle : Photoelectric proximity sensor
Functional principle detail : Background blanking
Dimensions (W x H x D) : 18 mm x 18 mm x 83.8 mm
Housing design (light emission) : Cylindrical
Housing length : 83.8 mm
Optical axis : Radial
Sensing range max. : 1 mm … 130 mm 1)
Sensing range : 1 mm … 100 mm 1)
Type of light : Visible red light
Light source : LED 2)
Light spot size (distance) : Ø 8 mm (100 mm)
Wave length : 645 nm
Adjustment : Potentiometer, 270° (Sensing range)
Special feature : Focused optics
Supply voltage : 10 V DC … 30 V DC 1)
Ripple : ± 10 % 2)
Current consumption : 30 mA 3)
Switching output : PNP
Switching mode : Light switching
Signal voltage PNP HIGH/LOW : Approx. VS – 1.8 V / 0 V
Output current Imax. : ≤ 100 mA
Response time : ≤ 0.5 ms 4)
Switching frequency : 1,000 Hz 5)
Connection type : Connector M12, 3-pin
Circuit protection : A 6)B 7)D 8)
Protection class : III
Housing material : Metal, Nickel-plated brass and PC
Optics material : Plastic, PMMA
Weight : 47 g
Shipping Weight : 1 kg
