Estimated Lead Time : 4 – 6 weeks.

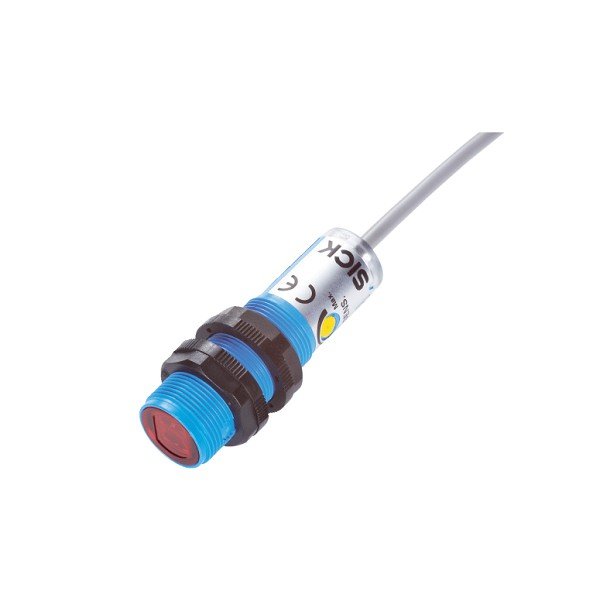

Manufacturer : SICK Sensors
Part Number : VTF180-2P41117 PHO
Functional principle : Photoelectric proximity sensor
Functional principle detail : Background blanking
Dimensions (W x H x D) : 18 mm x 18 mm x 62.5 mm
Housing design (light emission) : Cylindrical
Housing length : 62.5 mm
Thread diameter (housing) : M18 x 1
Optical axis : Axial
Sensing range max. : 1 mm … 140 mm
Sensing range : 1 mm … 100 mm
Type of light : Visible red light
Light source : LED
Light spot size (distance) : Ø 8 mm (100 mm)
Wave length : 645 nm
Adjustment : Potentiometer, 270° (Sensing range)
Special feature : Focused optics
Supply voltage : 10 V DC … 30 V DC
Ripple : ± 10 %
Current consumption : 30 mA
Switching output : PNP
Switching mode : Light/dark switching
Switching mode selector : Selectable via L/D control cable
Signal voltage PNP HIGH/LOW : Approx. VS – 1.8 V / 0 V
Output current Imax. : ≤ 100 mA
Response time : ≤ 0.5 ms
Switching frequency : 1,000 Hz
Connection type : Cable, 4-wire, 2 m
Cable material : PVC
Conductor cross section : 0.18 mm²
Cable diameter : Ø 3.8 mm
Circuit protection : A , B , D
Protection class : III
Weight : 62 g
Shipping Weight : 1.1 kg
