Estimated Lead Time: 6 – 8 Weeks.
Manufacturer : SICK Sensors

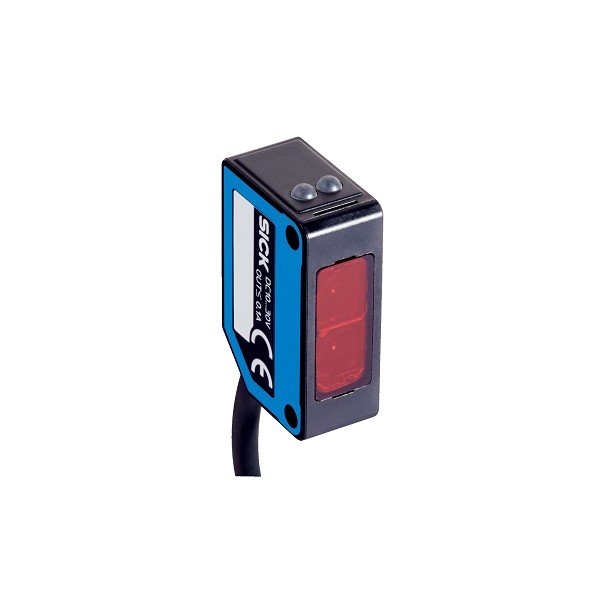

Model : WL100-2P0330S10
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual lens
Dimensions (W x H x D) : 11 mm x 31 mm x 20 mm
Housing design (light emission) : Rectangular
Sensing range max. : 0.01 m … 7.2 m 1)
Sensing range : 0.01 m … 5.5 m 1)
Type of light : Visible red light
Light source : LED 2)
Light spot size (distance) : Ø 280 mm (4 m)
Wave length : 632 nm
Adjustment : None
Supply voltage UB : 10 V DC … 30 V DC 1)
Ripple : ± 10 % 2)
Current consumption : 30 mA 3)
Switching output : PNP
Switching mode : Light switching
Signal voltage : PNP HIGH/LOW UV – 1,8 V / ca. 0 V
Output current Imax. : ≤ 100 mA
Response time : ≤ 0.5 ms 4)
Switching frequency : 1,000 Hz 5)
Connection type : Cable with connector M8, 3-pin, 200 mm 6)
Cable material : PVC
Conductor cross section : 0.18 mm²
Circuit protection
A 7)
B 8)
D 9)
Protection class : III
Polarisation filter : Yes
Housing material : Plastic, ABS/PC/POM
Optics material : Plastic, PMMA
Enclosure rating : IP67
Shipping Weight: 3 kg
