Estimated Lead Time : 4 – 6 Weeks
Manufacturer : Rosemount
Part Number : 0185D205K1D0035D0065T46E1G3Q8R01

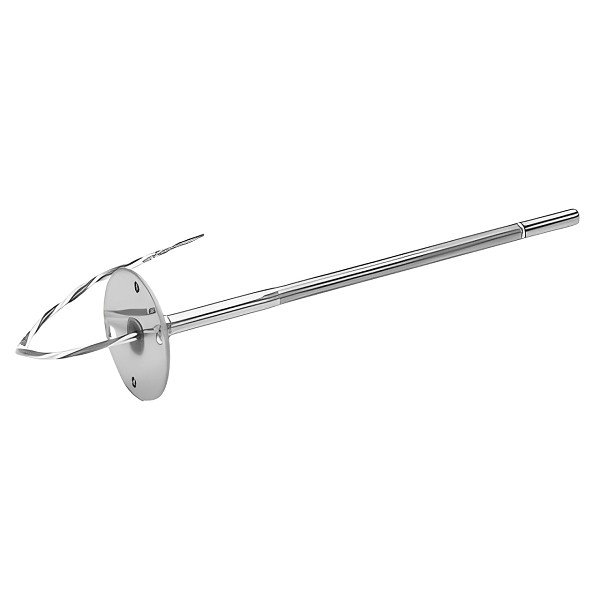

Series 185 Thermocouple without thermowell
Model : 0185 = Thermocouple (IEC 584 Class 1) without thermowell
Connection head : D
Description : Rosemount aluminum
IP rating(1) : 66/68
Conduit/cable entry : 1/2-in. NPT
Sensor lead wire termination : 2 = Terminal block (DIN 43762)
Sensor type : 05K1
Sensor : 185 only
Description : Thermocouple, Type K, dual element, isolated, ungrounded
Temperature range : –40 to 1000 °C (–40 to 1832 °F)
Extension : D
Description : DIN Standard 12 x 1.5
Head connection : M24 x 1.5
Instrument connection : 1/2-in. NPT
Material : 300 series stainless steel
Extension length (N) in millimeters : 0035 = 35 mm
Thermowell material : D = 316L SST
Sensor length (L) in millimeters : 0065 = 65mm
Thermowell mounting style : T46
Description : Threaded
Process connection : 3/4-in. NPT
Stem style : Tapered
Product certifications : E1 = ATEX Flameproof Approval
Cover chain option : G3 = Cover chain
Material certification : Q8 = Thermowell material certification, DIN EN 10204 3.1
External pressure test : R01 = Thermowell external pressure testing
Shipping Weight : 10 Kg
