Estimated Lead Time : 7 – 10 Working Days
Manufacturer : Honeywell

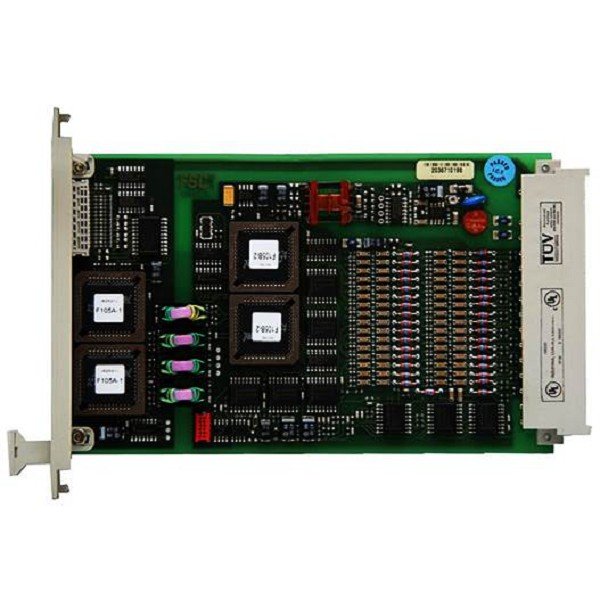

Product No : 10105/2/1
Product type : Fail-safe high-density analog input module (24 Vdc, 16 channels)
The analog inputs of the 10105/2/1 module require the field signals to be converted from 0-20 mA to a level that can be used by the 10105/2/1 module.
This conversion can be established in two ways:on the field termination assembly module FTA-T-14, or using the analog input conversion module 10105/A/1, which is
placed on a programming connector (Px) on the back of the I/O backplane in the 19-inch rack.
Type number: 10105/2/1 16900
Approvals: CE; TÜV, UL approvals pending
Safety class: AK1-6 (AK6 in redundant mode)
Software versions: = 500
Space requirements: 4 TE, 3 HE (= 4 HP, 3U)
Power Power requirements: 5 Vdc 35 mA ; 24 Vdc 35 mA
Number of input channels: 16
Input range: 0 to 4.1 V
Input resistance: > 1 MOhm
A/D converter: 12-bit
A/D converter inaccuracy: ± 1 LSB
Module inaccuracy: < 0.25% Absolute max. input signal: ± 36 Vdc Crosstalk between channels: > 60 dB*
External voltage readback: range 0 to 4.1 V, input resistance typically 1 MOhm
Shipping Weight : 1.5 Kg
