Estimated Lead Time : 6 – 8 Weeks
Manufacturer : Rosemount
Part Number : 114CM0215VAM2SC040AA300B190D01E030F01Q8R21TG1R62T01XW

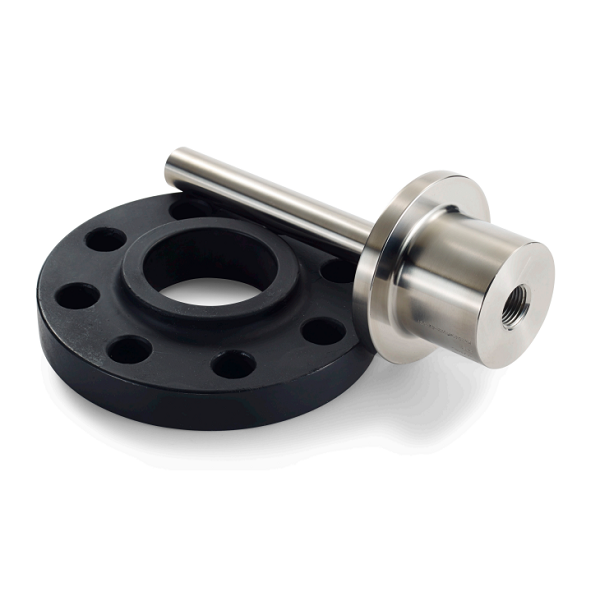

Model : 114C | Barstock temperature thermowell
Dimension units : M = Metric units (mm)
Immersion length (U) : 0215 = 215 mm
Mounting style : V = Van Stone, lap flange
Process connection : AM = 1½-in. Class 400/600
Stem style : 2 = Tapered
Thermowell material : SC = 316/316L dual rated
Head length (H) : 040 = 40 mm
Instrument connection : A = 1½-14
Root diameter (A) : Code A300 = 30.0 mm
Tip diameter (B) : Code B190 = 19.0 mm
Non-standard bore diameter (d) : D01 = 0.276-in./7.0 mm
Fillet radius (e) : E03 = 0.118-in./3 mm
Van stone stub thickness : F01 = 0.591-in. (15 mm)
Material certification : Q8 = Material certification
Thermowell calculation : R21 = Thermowell calculation
Roughened stem : R62 = Roughened stem
Shipping weight : 3 Kg
