Estimated Lead Time : 1 – 10 Working Days
Manufacturer : Siemens

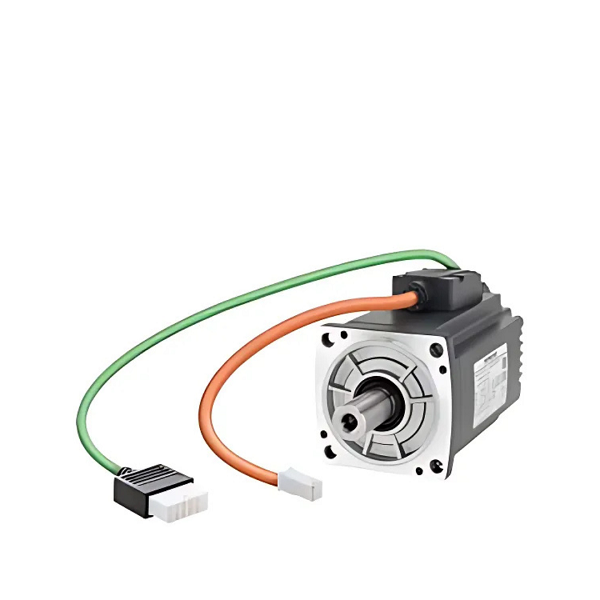

Part Number : 1FL6024-2AF21-1AB1
SIMOTICS S-1FL6
Operating Voltage : 230 V, 3-phase AC
Rated Power (Pn) : 0.1 kW
Rated Speed (Nn) : 3000 rpm
Rated Torque (MN) : 0.32 Nm
Maximum Torque (M0) : 0.32 Nm
Shaft Height : 20 mm
Encoder : Incremental encoder, TTL, 2500 pulses/rev
Shaft Type : With feather key
Tolerance : Class N (standard mechanical tolerance)
Holding Brake : Yes (integrated)
Degree of Protection : IP65 (with shaft sealing ring)
Mounting Type : Flange mounting
Cooling Method : Natural convection (surface-cooled)
Compatible Drive : SINAMICS V90 servo drive
Country of origin : China
Weight : 0.860 Kg
Shipping Weight : 2 Kg
