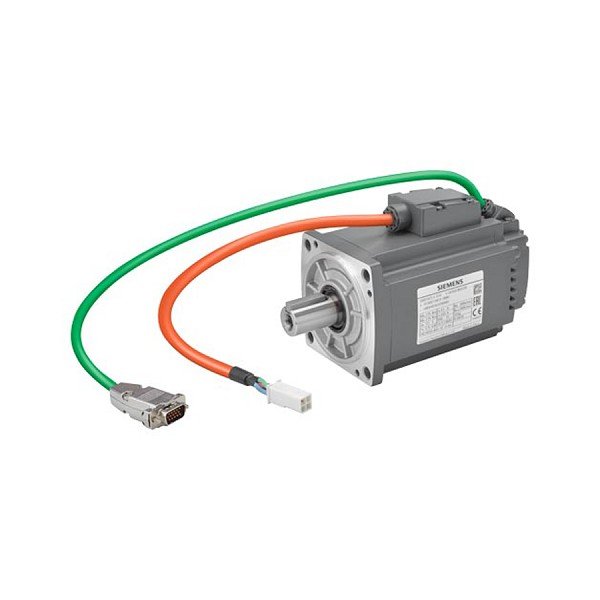

Name: 1FL6042-2AF21-1LG1 Siemens 1FL6 Servomotors for SINAMICS V90
SKU: 1FL6042-2AF21-1LG1
Availability: InStock

Estimated Lead Time : Usually ships in 1-10 working days.
Manufacturer : Siemens
Product No. : 1FL6042-2AF21-1LG1
Product Type : 1FL6 Servomotors for SINAMICS V90
Rated speed : 3000 rpm
Rated torque (100 K) : 2.39 Nm
Rated current : 4.7 A
Rated power : 0.75 kW / 1.02 hp
Max. speed : 5000 rpm
Maximum torque : 7.20 Nm
Max. current : 14.2 A
Static torque : 2.39 Nm
Moment of inertia : 0.897 kgcm²
Motor type : Low Inertia
Shaft height : 40
Encoder system : Absolute encoder 20 bit + 12 bit multi-turn
Cooling : Natural Cooling
Shaft end : Plain Shaft
Radial runout tolerance : Class N
Vibration severity grade : Grade A
Degree of protection : IP65
Design acc. to Code I : IM B5 (IM V1, IM V3)
Connection Type : Cable Outlet
Weight : 2.80 Kg
Shipping Weight : 4 Kg
