Estimated Lead Time : 1 – 10 Working Days
Manufacturer : Siemens

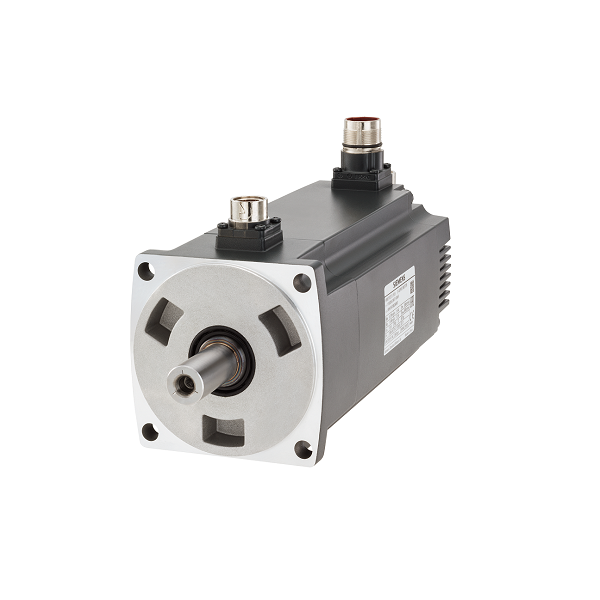

Part Number : 1FL6054-2AF21-2AB1
SIMOTICS S-1FL6
Operating Voltage : 230 V, 3-phase AC
Rated Power (Pn) : 2.0 kW
Rated Speed (Nn) : 3000 rpm
Rated Torque (MN) : 6.37 Nm
Maximum Torque (M0) : 6.37 Nm
Shaft Type : With feather key
Shaft Height : 50 mm
Encoder Type : Incremental TTL, 2500 pulses/rev
Encoder Connection : Angle plug
Tolerance Class : N (standard mechanical tolerance)
Holding Brake : Yes, integrated
Degree of Protection : IP65 with shaft sealing ring
Cooling : Surface cooled (natural convection)
Mounting : Flange mount (standard)
Compatible Drive : Fully compatible with SINAMICS V90 converters
Country of origin : China
Weight : 8.200 Kg
Shipping Weight : 9 Kg
