Estimated Lead Time : 6 – 8 weeks.
Manufacturer : Rosemount
Product No. : 2051CD3A02A1AS5I1M5P9+0305RC52B11B4L4

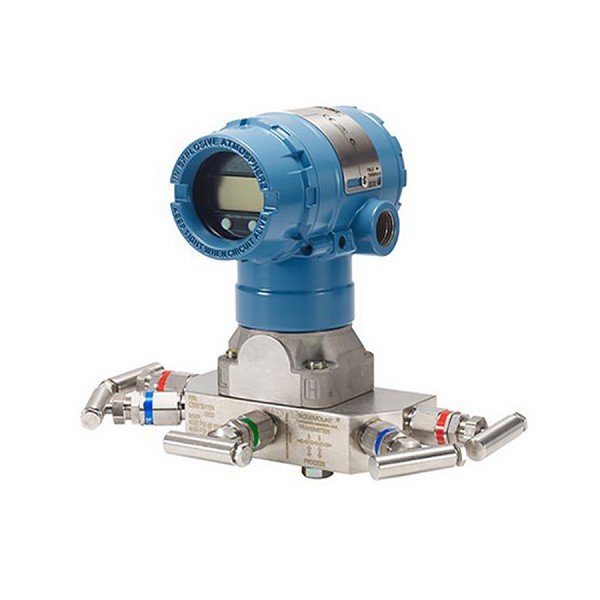

Product type : 2051C Coplanar Pressure Transmitter + 305 Integral Manifold
2051CD3A02A1AS5I1M5P9 : 2051C Coplanar Pressure Transmitter
Measurement type : D = Differential
Pressure range : 3 = –1000 to 1000 inH2O (–2,5 to 2,5 bar)
Transmitter output : A = 4–20 mA with digital signal based on HART Protocol
Materials of construction : 0 = Alternate process connection
Isolating diaphragm : 2 = 316L SST
O-ring : A = Glass-filled PTFE
Sensor fill fluid : 1 = Silicone
Housing material , Conduit entry size : A = Aluminum , 1/2–14 NPT
Manifold assembly : S5 = Assemble to Rosemount 305 Integral Manifold
Product certifications : I1 = ATEX Intrinsic Safety
Display and interface options : M5 = LCD display
Maximum static line pressure : P9 = 4500 psig (310 bar) static pressure limit (2051CD Ranges 2–5 only)
Weight : 8 Kg
0305RC52B11B4L4 : 305 Integral Manifold
0305 : Integral manifold
Manufacturer : R = Rosemount
Manifold style : C = Integral
Manifold type : 5 = Five valve
Body : 2 = 316 SST/316L SST, Bonnet 316 SSt, Stem and Tip/ball 316 SST
Process connection style : B = 1/2–14 NPT female
Packing material : 1 = PTFE
Valve seat : 1 = Integral
Mounting brackets : B4 = SST mounting bracket for 2-in. pipe mounting, 300 SST bolts
Bolt materials : L4 = Austenitic 316 SST bolts
Weight : 3 Kg
Shipping weight : 12 Kg
