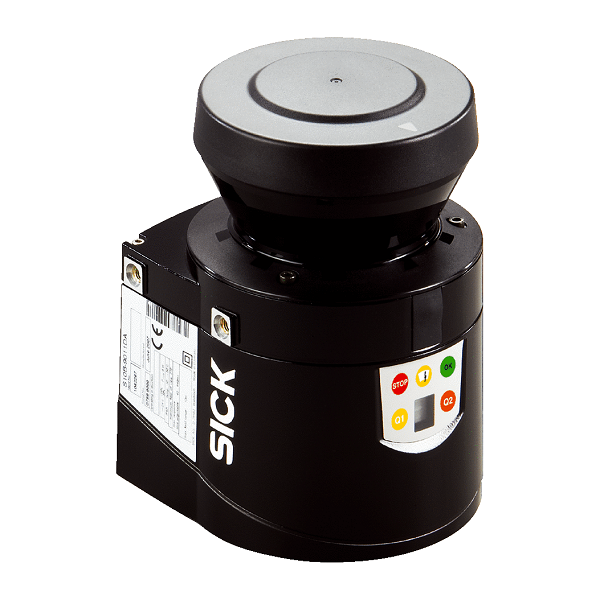

2D laser scanners S10B-9011DA Professional Indoor

Estimated Lead Time : 4-6 Weeks

S10B-9011DA

2D laser scanners S10B-9011DA Professional Indoor

Part Number : 1042267

Manufacturer: SICK Sensors

Version : Short Range

Field of application : Indoor

Light source : Infrared (905 nm)

Laser class : 1, 21CFR 1040.10, 21CFR 1040.11, IEC60825-1:2001

Aperture angle : 270°

Scanning frequency : 25 Hz

Angular resolution : 0.5°, 1°

Operating range : 0 m … 10 m

Max. range with 10 % reflectivity : 4.5 m

Detectable object shape : Almost any (diameter: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm (selectable))

Integrated application : Field evaluation

Number of field sets : 16 field pairs (32 fields)

Simultaneous evaluation cases : 1 (2 fields)

Serial (RS-232 : ) Yes

Ethernet : –

CAN bus :Yes

Protocol : CANopen

PROFIBUS DP : –

PROFINET : –

DeviceNet : –

Switching inputs : 4

Switching outputs : 2

Optical indicators : 1 7-segment display (contamination warning, initial condition)

Electrical connection : 1 x system plug with screw terminal block (accessory)

Operating voltage : 16.8 V DC … 30 V DC

Power consumption : 8 W

Output current : = 250 mA

Housing color : Black (RAL 9005)

Enclosure rating : IP 65, EN 60529, Section 14.2.5

Protection class : II, VDE 0106, EN50178

Weight : 1.2 kg, without connecting cables

Dimensions (L x W x H) : 105 mm x 102 mm x 152 mm

Object remission : 1.8 % … > 1,000 % (reflectors)

Ambient operating temperature : 10 °C … +50 °C

Storage temperature : 30 °C … +70 °C

Shipping Weight: 2.2 Kg

Download PDF File S10B-9011DA
