Estimated Lead Time : 1 – 10 Working Days
Manufacturer : Siemens
Product No : 6ES7405-0KA02-0AA0

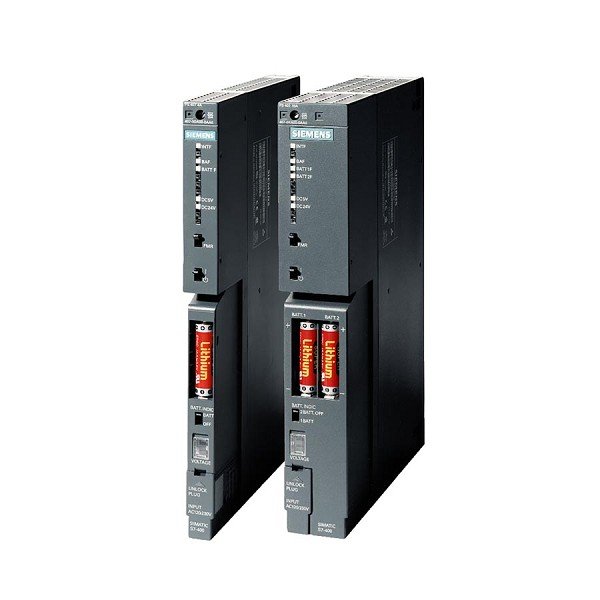

Product type : SIMATIC S7-400 Power Supply PS405
Wide range 10 A, 24/48/60 V DC; 5 V DC/10 A ATEX approval marking
Input current Rated value at 24 V DC : 4 A
Backup battery (optional) : 2x lithium AA; 3.6 V / 2.3 Ah
Required slots : 2
Equipment protection class : I, with protective conductor
FM approval : Yes; Ta: 0 °C to 60 °C T4
Ambient temperature during operation : min. 0 °C, max. 60 °C
Design of electrical connection : 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm
Active power input, typ. : 95 W
Power loss, typ. : 20 W
Dimensions (LxWxH) : 21.7cm x 5cm x 29cm
Weight : 1.2 Kg
Shipping Weight : 2.5 Kg
