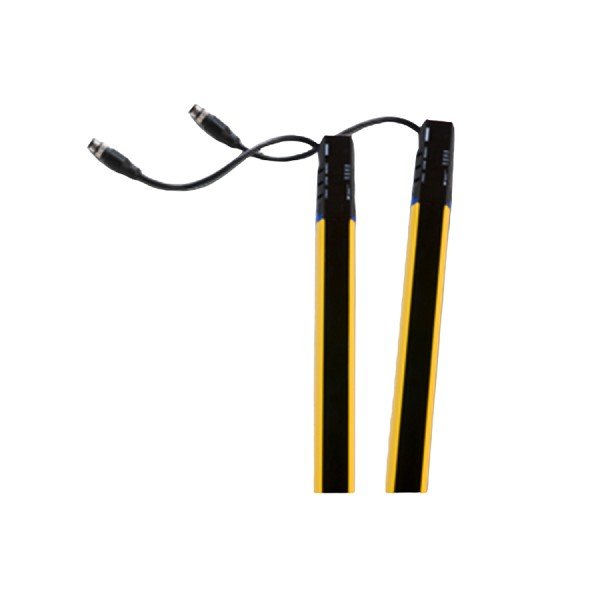

SG4-14-030-OO-P Datalogic Safety Light Curtains

Estimated Lead Time : 2 – 4 weeks.
Manufacturer : Datalogic
Product No. : SG4-14-030-OO-P
Product Type : Safety Light Curtains

14 mm resolution (SG4 EXTENDED)

SG4 EXTENDED is a Type 4 safety light curtain, with finger and hand resolution, that perfectly combines easy of use with applicative flexibility, reliability and performance.

Totally zero dead zone and series connection of up to three units (cascade) are the distinctive characteristic of all models, from 300 mm to 1800 mm of height.

Integrated functions as total and partial muting, fixed and movable blanking guarantee full application coverage.

Configuration of functions and parameters can be set two ways:

For common applications: Basic Configuration Mode (BCM) easy and fast with pushbuttons

For more complex applications: Advanced Configuration Mode (ACM), with a Graphical User Interface (GUI) installed on a PC and connected through Ethernet

Type 4

14 mm (finger) or 30 mm (hand)

Compact dimensions (35 x 41 mm section)

Zero dead zone

Up to 20 m operating distance (7 m for 14 mm resolution)

300-1800 mm controlled height

Basic Configuration Mode (BCM) through push-buttons

Advanced Configuration Mode (ACM) through graphic user interface

Cascade up to 3 units

Integrated muting function

Integrated fixed and floating blanking function

Dongle (accessory) for: – Configuration cloning – Ethernet (Tcp/Ip connection) – Remote monitoring – Remote programming – Error logging

Shipping Weight : 10 Kg
