Estimated Lead Time : 1 – 2 weeks.
Manufacturer : FANUC

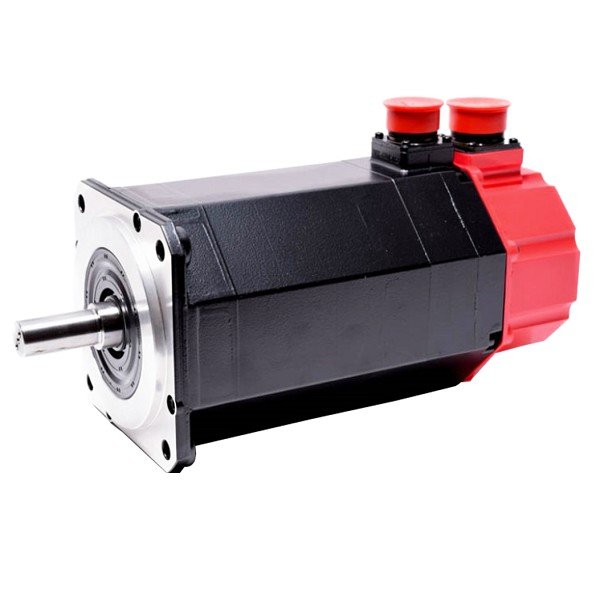

Product No. : A06B-0142-B175
Product Type : AC Servo Motor a series.
42 : Model a12/2000
1 : Straight shaft with the brake (35Nm)
75 : Pulse coder aA64
Rating rotation speed, Nmax : 2000 min -1
Rated torque at stall, Ts : 12 Nm, 122 kgfcm
Rotor inertia, Jm : 0.0062 kgm2, 0.064 kgfcms2
Continuous RMS current at stall, ls : 8.8 A(ms)
Torque constant, Kt : 1.36 Nm/A (rms), 13.8 kgfcm/A (rms)
Armature resistance (1–phase), Ra : 0.49 ?
Mechanical time constant, tm : 0.005 s
Thermal time constant, tt : 60 min
Static friction, Tf : 0.8Nm, 8 kgfcm
Weight : 18 Kg
Shipping Weight : 20 Kg
