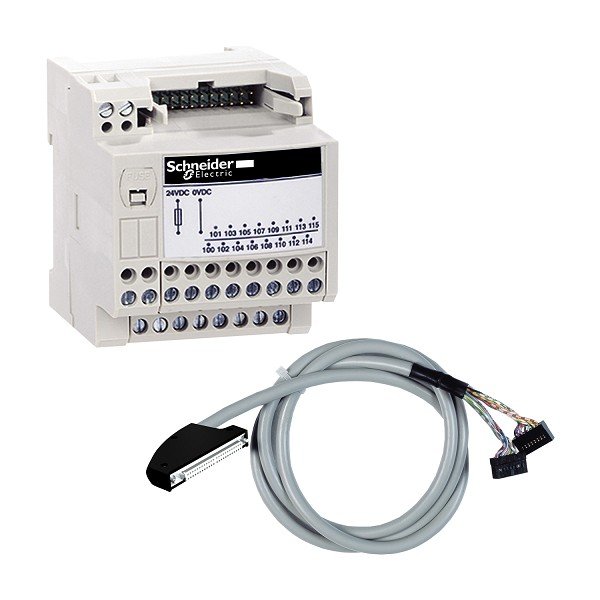

ABE7H08R21 Schneider Electric passive connection sub-base ABE7 – 8 inputs or outputs – Led

Estimated Lead Time : 4 – 6 weeks.

Manufacturer : Schneider Electric

passive connection sub-base ABE7 – 8 inputs or outputs – Led

Main

Range of product : Modicon ABE7

Product or component type : Passive discrete I/O sub-base

Sub-base type : I/O sub-base

[Us] rated supply voltage : 19…30 V conforming to IEC 61131-2

Number of channels : 8

Number of terminal per channel : 2

Connections – terminals

Screw type terminals, 1 x 0.09…1 x 1.5 mm² (AWG 28…AWG 16) flexible with cable end

Screw type terminals, 1 x 0.14…1 x 2.5 mm² (AWG 26…AWG 12) solid

Screw type terminals, 1 x 0.14…1 x 2.5 mm² (AWG 26…AWG 14) flexible without cable end

Screw type terminals, 2 x 0.09…2 x 0.75 mm² (AWG 28…AWG 20) flexible with cable end

Screw type terminals, 2 x 0.2…2 x 2.5 mm² (AWG 24…AWG 14) solid

Complementary

supply voltage type : DC

Number of horizontal rows : 2

Status LED

1 LED per channel (green) channel status

1 LED (green) power ON

Polarity distribution : 0 V or 24 V

Short-circuit protection : 6.3 A internal fuse, 5 x 20 mm, fast blow (PLC end)

Connector type : HE-10

Pin number : 20 pins

Fixing mode

By clips (35 mm symmetrical DIN rail)
By screws (solid plate with fixing kit)

Maximum supply current : 4.1 A

Current per channel : 0.5 A

maximum current per output common : 4.1 A

Voltage drop on power supply fuse : 0.2 V

[Ui] rated insulation voltage : 2000 V

Installation category : II conforming to IEC 60664-1

Tightening torque : 0.6 N.m with flat Ø 3.5 mm screwdriver

Width : 84 mm

Product weight : 0.218 kg

Environment

Product certifications

DNV

UL

CSA

GL

EAC

IP degree of protection : IP2X conforming to IEC 60529

Resistance to incandescent wire : 750 °C conforming to IEC 60695-2-11

Shock resistance : 15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance : 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

4 kV (contact) level 3 conforming to IEC 61000-4-2

8 kV (air) level 3 conforming to IEC 61000-4-2

Resistance to radiated fields : 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3

Resistance to fast transients : 2 kV level 3 conforming to IEC 61000-4-4

Ambient air temperature for operation : -5…60 °C conforming to IEC 61131-2

Ambient air temperature for storage : -40…80 °C conforming to IEC 61131-2

Pollution degree : 2 conforming to IEC 60664-1

Shipping Weight : 1 Kg
