Estimated Lead Time : 1 – 10 Working days.

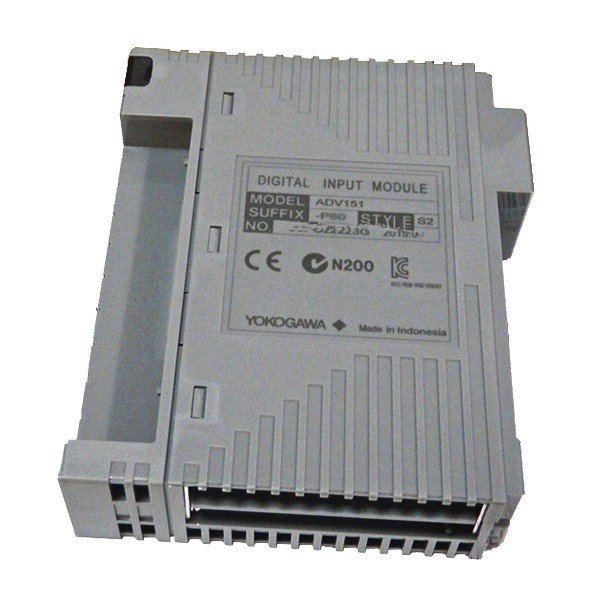

Manufacturer : Yokogawa
Product No. : ADV151-P50/CCC01
Product Type : Digital Input Module
ADV151 – Model : Digital Input Module (32-channel, 24 V DC, Isolated)
P – Suffix codes : With pushbutton input
5 – Suffix codes : Without status display; with no explosion protection
0 – Suffix codes : Basic type
CCC01 – Option codes : With Connector Cover for MIL Cable [Model:ACCC01]
Number of input channels : 32
Rated input voltage (*2) : 24 V DC (sink/source)
Input ON voltage : 18 to 26.4 V DC
Input OFF voltage : 5.0 V DC or less
Input current (at rated input voltage) : 4.1 mA±20 % / channel
Maximum allowable input voltage : 30.0 V DC
Functions
– Status input : Function for detecting ON/OFF status
– Pushbutton input : Function for counting the pushbutton edges
– SOE input : Function for capturing the SOE data
Input response time : 8 ms or less (for status input)
Minimum ON detection time : 20 ms (for pushbutton input)
Maximum ON/OFF : cycle 25 Hz (for pushbutton input)
Maximum current consumption : 500 mA (5 V DC)
Weight : 0.3 kg
Shipping Weight : 2 kg
