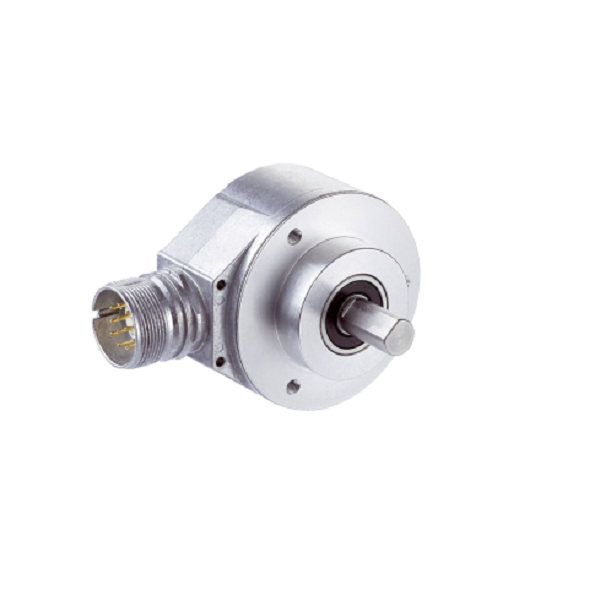

AFM60E-S4LA004096 SICK Encoders Part number: 1057332

Estimated Lead Time : 6 – 8 weeks

Manufacturer : SICK Sensors

Part Number : AFM60E-S4LA004096

Number of steps per revolution (max. resolution) : 4,096 (12 bit)

Number of revolutions : 4,096 (12 bit)

Max. resolution (number of steps per revolution x number of revolutions) : 12 bit x 12 bit (4,096 x 4,096)

Error limits G : 0.2° 1)

Repeatability standard deviation σr : 0.002° 2)

Communication interface : SSI

Communication Interface detail : SSI + incremental / HTL

Initialization time : 50 ms 1)

Position forming time : < 1 µs Code type : Gray Code sequence parameter adjustable : CW/CCW (V/R¯) parameter adjustable Clock frequency : ≤ 1 MHz 2) Set (electronic adjustment) : H-active (L = 0 - 3 V, H = 4,0 - Us V) CW/CCW (counting sequence when turning) : L-active (L = 0 - 1,5 V, H = 2,0 - Us V) Pulses per revolution : 1/4 of number of SSI steps per revolution Output frequency : ≤ 300 kHz Load current : ≤ 30 mA Connection type : Male connector, M23, 12-pin, radial Supply voltage : 4.5 ... 32 V Power consumption : ≤ 0.7 W (without load) MTTFd: mean time to dangerous failure : 250 years (EN ISO 13849-1) 1) Mechanical design : Solid shaft, face mount flange Shaft diameter : 10 mm Shaft length : 19 mm Weight : 0.3 kg 1) Shipping weight : 2 kg
