Manufacturer: Schmersal

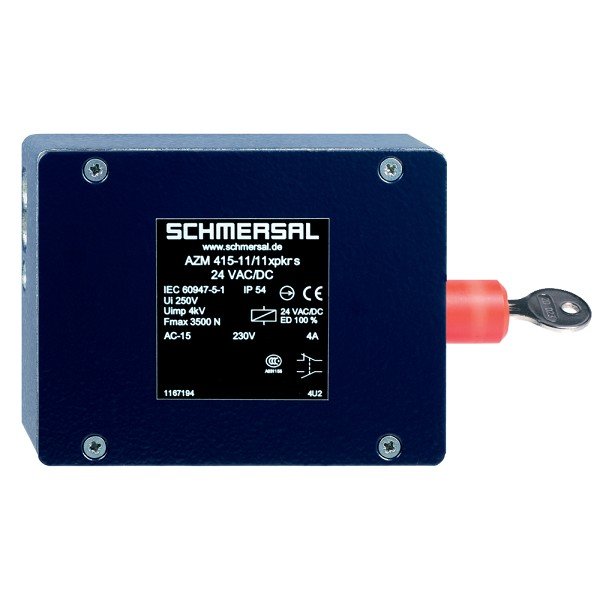

AZM 415-11/11XPKRS 230VAC
Ordering data
Article number (order number) : 101167200
EAN (European Article Number) : 4030661218144
eCl@ss number, version 12.0 : 27-27-26-03
eCl@ss number, version 11.0 : 27-27-26-03
eCl@ss number, version 9.0 : 27-27-26-03
ETIM number, version 7.0 : EC002593
ETIM number, version 6.0 : EC002593
Approvals – Standards
Certificates : BG, cULus, CCC
General data
Standards : BG-GS-ET-19, EN IEC 60947-5-1
Working principle : electromechanical
Enclosure material : Aluminium
Enclosure coating material : painted
General data – Features
Power to unlock : Yes
Manual release : Yes
Number of actuating directions : 1
Number of auxiliary contacts : 2
Number of safety contacts : 2
Number of guard doors : 1
Safety classification
Standards : EN ISO 13849-1
Mission time : 20 Year(s)
Safety classification – Safety outputs
B10D Normally-closed contact (NC) : 2,000,000 Operations
Mechanical data
Mechanical life, minimum : 1,000,000 Operations
Holding force FZh in accordance with EN ISO 14119 : 3,500 N
Latching force, minimum : 150 N
Latching force, maximum : 400 N
Positive break travel : 5 mm
Positive break force, minimum : 15 N
Actuating speed, maximum : 0.2 m/s
Mechanical data – Connection technique
Termination : Screw terminals M20 x 1.5
Cable section, minimum : 2 x 0.75 mm²
Cable section, maximum : 2 x 2.5 mm²
Note (Cable section) : All indications including the conductor ferrules.
Mechanical data – Dimensions
Length of sensor : 46.5 mm
Width of sensor : 160 mm
Height of sensor : 100 mm
Ambient conditions
Degree of protection : IP54
Ambient temperature : -25 … +50 °C
Ambient conditions – Insulation values
Rated insulation voltage Ui : 250 VAC
Rated impulse withstand voltage Uimp : 4 kV
Electrical data
Thermal test current : 6 A
Rated control voltage : 230 VAC
Utilisation category AC-15 : 230 VAC
Utilisation category AC-15 : 4 A
Utilisation category DC-13 : 24 VDC
Utilisation category DC-13 : 1 A
Electrical power consumption, maximum : 10 W
Switching element : NO contact, NC contact
Switching principle : Slow action
Material of the contacts, electrical : Silver
Other data
Note (applications) : sliding safety guard, hinged safety guard
Note (Manual release) : Only used on units with power to unlock principle. Release by means of cylinder lock. Resetting can only be carried out by authorised personnel using key. In removed condition, the guard device is protected against unintentional closing. With key
Weight : 0.95 Kg
Shipping Weight : 2.0 Kg
