Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

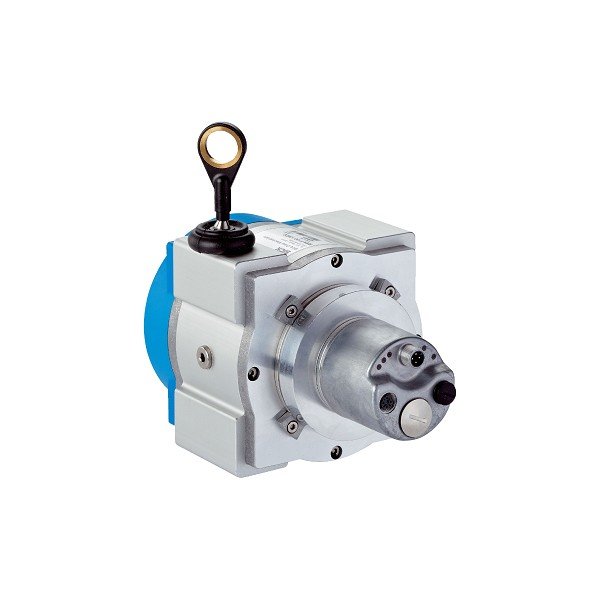

Part Number : BTF13-E1BM0599
Measurement range : 0 m … 5 m
Encoder : Absolute encoders
Resolution (wire draw + encoder) : 0.001 mm 1) 2)
Repeatability : ≤ 1 mm 3)
Linearity : ≤ ± 2 mm 3)
Hysteresis : ≤ 2 mm 3)
Communication interface : EtherCAT®
Programmable/configurable : Yes
Connection type : Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axia
Supply voltage : 10 V DC … 30 V DC
Power consumption : ≤ 3 W (without load)
MTTFd: mean time to dangerous failure : 80 years (EN ISO 13849-1) 1)
Measuring wire material : Highly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter : 1.35 mm
Weight (measuring wire) : 7.1 g/m
Housing material, wire draw mechanism : Aluminum (anodised), plastic
Spring return force : 15 N … 20 N 1)
Length of wire pulled out per revolution : 334.1 mm
Life of wire draw mechanism : Typ. 1,000,000 cycles 2) 3)
Actual wire draw length : 5.2 m
Wire acceleration : 70 m/s²
Operating speed : 8 m/s
Mounted encoder : AFM60 PROFINET, AFM60A-S1NB018X12, 1059040
Mounted mechanic : MRA-F130-130D1, 6028629
Weight : 3 kg
Shipping Weight : 4 kg
