Estimated Lead Time : 6 – 8 weeks.

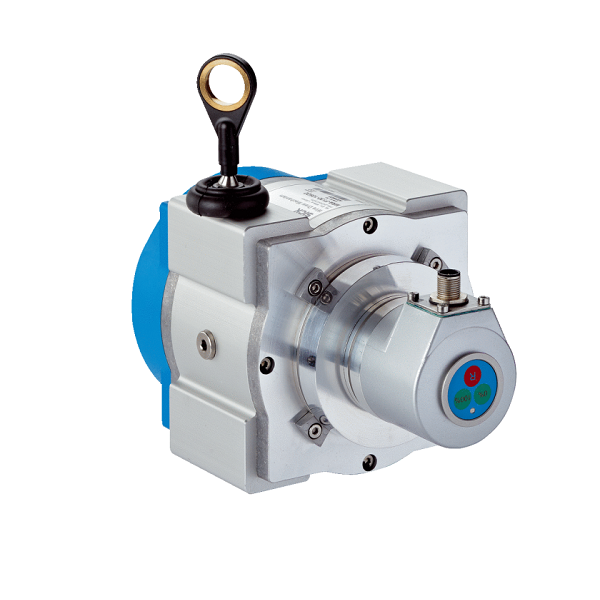

Manufacturer : SICK Sensors
Part Number : BTF13-L1EM20PP
Measurement range : 0 m … 20 m
Encoder : Absolute encoders
Resolution (wire draw + encoder) : 0.04 mm
Repeatability : ≤ 2 mm
Linearity ≤ : ± 2 mm
Hysteresis : ≤ 5 mm
Communication interface : Analog / Current / 4…20 mA
Programmable/configurable : yes
Connection type : Male connector, M12, 5-pin, universal
Supply voltage : 18 V DC … 33 V DC
Operating current : ≤ 80 mA (without load)
MTTFd: mean time to dangerous failure : 600 years (EN ISO 13849-1)
Measuring wire material : Highly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter : 0.81 mm
Weight : 5.4 kg
Shipping Weight : 6.4 kg
