Estimated Lead Time: 6 – 8 Weeks.

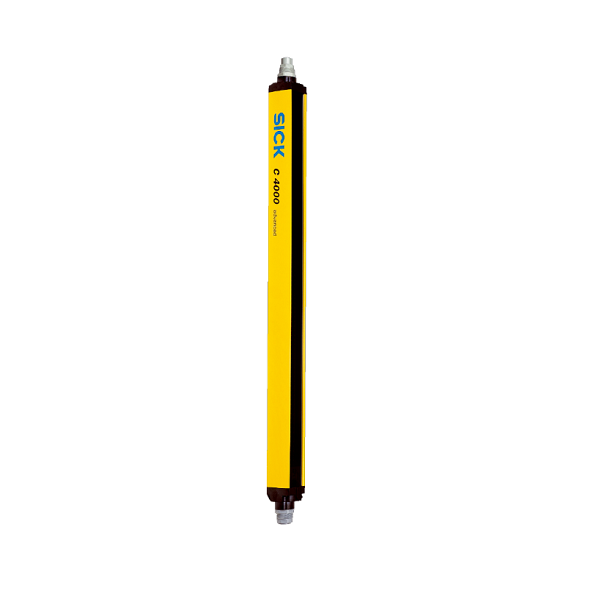

Manufacturer : SICK Sensors
Part Number : C40E-0303DB010
Application : Normal industrial environment
System part : Receiver
Resolution : 30 mm
Scanning range : 21 m
Protective field height : 300 mm
Response time : 10 ms
Synchronization : Optical synchronisation
System connection : Hirschmann male connector M26, 12-pin
Direction of cable connection : Straight
Conductor cross section : 0.75 mm²
Permitted cable length : 50 m
Extension connection : Hirschmann female connector M26, 12 pin
Configuration connection : Female connector M8, 4-pin
Configuration method : PC with CDS (Configuration and Diagnostic Software)
Display elements : 7-segment display
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Weight : 850 g
Shipping Weight : 2 kg
