Estimated Lead Time : 6 – 8 weeks.

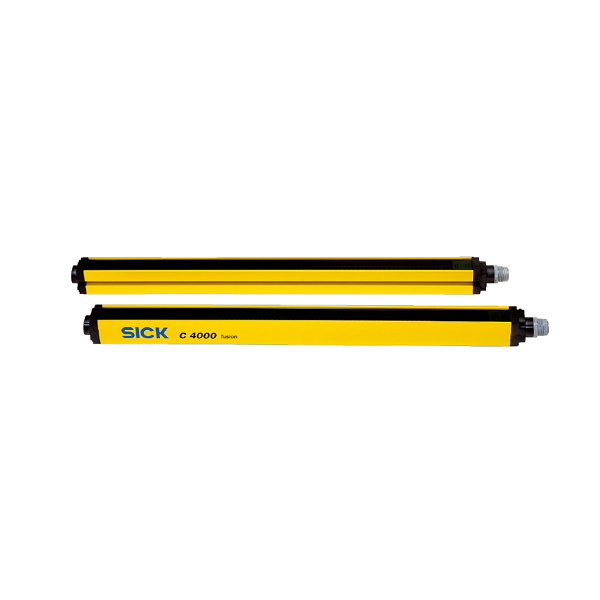

Manufacturer : SICK Sensors
Part Number : C40E-1203GK010
Application : Normal industrial environment
System part : Receiver
Resolution : 30 mm
Scanning range : 7 m
Protective field height : 1,200 mm
Synchronization : Optical synchronisation
Items supplied
Receiver
8 sliding nuts for side mounting
Test rod with diameter corresponding to the resolution of the safety light curtain
Adhesive label with information on the daily check
Operating instructions on CD-ROM
CDS (Configuration & Diagnostic Software)
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (EN ISO 13849)
Performance level : PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) : 15 * 10-9 (EN ISO 13849) , 43 * 10-9 (EN ISO 13849) , 63 * 10-9 (EN ISO 13849)
TM (mission time) : 20 years (EN ISO 13849)
Safe state in the event of a fault : At least one OSSD is in the OFF state.
System connection : Hirschmann male connector M26, 12-pin
Direction of cable connection : Straight
Conductor cross section : 0.75 mm²
Permitted cable length : 50 m
Configuration connection : Female connector M8, 4-pin
Configuration method : PC with CDS (Configuration and Diagnostic Software)
Display elements : 7-segment display
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Residual ripple : ≤ 10 %
Housing material : Aluminum extruded profile
Housing cross-section : 48 mm x 40 mm
Weight : 2,560 g
Shipping Weight : 3.6 kg
