Estimated Lead Time : 6 – 8 Weeks
Manufacturer : SICK Sensors
Part Number : TiM571-9950101S01
Application : Explosive areas
Ex-approvals
ATEX for gas: II 3G Ex nA op is IIC T4 Gc X
ATEX for dust: II 3D Ex tc IIIC T135°C Dc

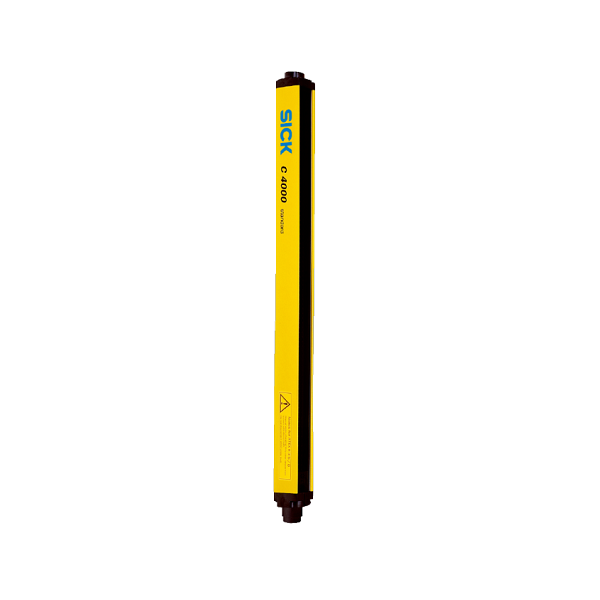

System part : Receiver
Resolution : 20 mm
Protective field : height : 750 mm
Scanning range : 21 m
Synchronization : Optical synchronisation
System connection : Hirschmann male connector M26, 12-pin
Direction of cable connection Straight
Conductor cross section 0.75 mm²
Permitted cable length 50 m
Configuration connection : Female connector M8, 4-pin
Configuration method : PC with CDS (Configuration and Diagnostic Software)
Display elements : 7-segment display
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Shipping Weight : 2.8 Kg
