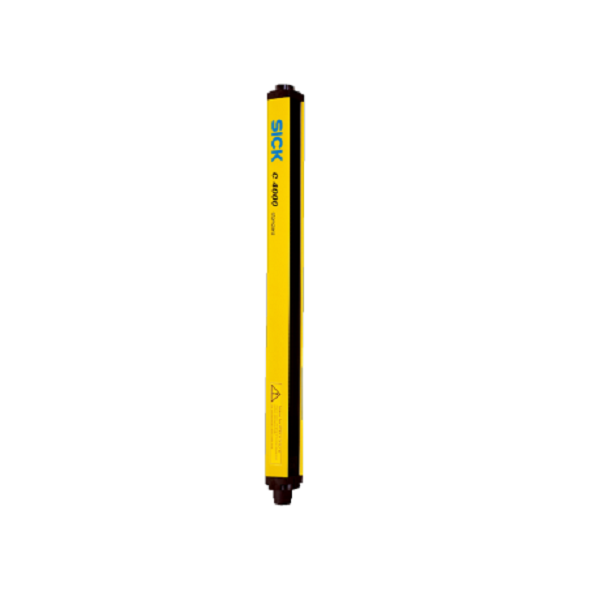

C40S-S136 SICK Sensors Safety light curtains C4000 Standard ATEX II 3G/3D /Pair, Part Number: 1063412

Estimated Lead Time : 6 – 8 weeks

Manufacturer : SICK Sensors

Part Number : C40S-S136

Application : Explosive areas

Ex-approvals : ATEX for gas: II 3G Ex nA op is IIC T4 Gc X / ATEX for dust: II 3D Ex tc IIIC T135°C Dc

System part : Sender

Resolution : 14 mm

Scanning range : 10 m

Protective field height : 1,800 mm

Synchronization : Optical synchronisation

Type : Type 4 (IEC 61496-1)

Safety integrity level : SIL 3 (IEC 61508)

Category : Category 4 (EN ISO 13849)

Performance level : PL e (EN ISO 13849)

PFHD (mean probability of a dangerous failure per hour) : 15 x 10-9 (EN ISO 13849)

TM (mission time) : 20 years (EN ISO 13849)

Safe state in the event of a fault : At least one OSSD is in the OFF state.

Protection class : III (IEC 61140)

Supply voltage VS : 24 V DC (19.2 V … 28.8 V) 1)

Residual ripple : = 10 % 2)

Dimensions : See dimensional drawing

Housing cross-section : 48 mm x 40 mm

Housing material : Aluminum extruded profile

Enclosure rating : IP65 (EN 60529)

Ambient operating temperature : 0 °C … +55 °C

Storage temperature : –25 °C … +70 °C

Air humidity : 15 % … 95 %, Non-condensing

Vibration resistance : 5 g, 10 Hz … 55 Hz (EN 60068-2-6)

Shock resistance : 10 g, 16 ms (EN 60068-2-27)

Shipping weight : 3 kg
