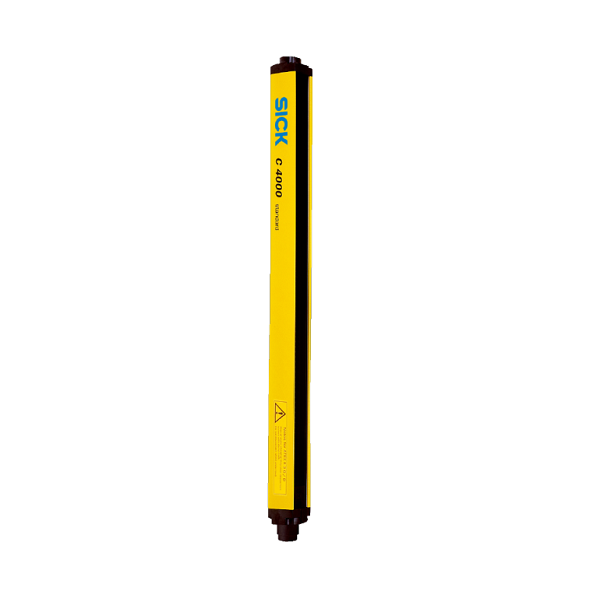

C40S-S144 C4000 Advanced ATEX II 3G/3D SICK Sensors SAFETY LIGHT CURTAINS , Part Number : 1071158

Estimated Lead Time : 6 – 8 weeks.

Manufacturer : SICK Sensors

Part Number : C40S-S144

Application : Explosive areas

Ex-approvals : ATEX for gas: II 3G Ex nA op is IIC T4 Gc X , ATEX for dust: II 3D Ex tc IIIC T135°C Dc

System part : Sender

Resolution : 14 mm

Scanning range : 10 m

Protective field height : 450 mm

Synchronization : Optical synchronisation

Type : Type 4 (IEC 61496-1)

Safety integrity level : SIL 3 (IEC 61508)

Category : Category 4 (EN ISO 13849)

Performance level : PL e (EN ISO 13849)

PFHD (mean probability of a dangerous failure per hour) : 15 x 10-9 (EN ISO 13849)

TM (mission time) : 20 years (EN ISO 13849)

Safe state in the event of a fault : At least one OSSD is in the OFF state.

System connection : Hirschmann male connector M26, 12-pin

Direction of cable connection : Straight

Conductor cross section : 0.75 mm²

Permitted cable length : 50 m

Configuration connection : Female connector M8, 4-pin

Configuration method : PC with CDS (Configuration and Diagnostic Software)

Display elements : 7-segment display

Protection class : III (IEC 61140)

Supply voltage VS 24 V : DC (19.2 V … 28.8 V)

Residual ripple : ≤ 10 %

Dimensions : See dimensional drawing

Housing cross-section : 48 mm x 40 mm

Housing material : Aluminum extruded profile

Shipping Weight : 3 kg
