Estimated Lead Time: 6 – 8 Weeks.

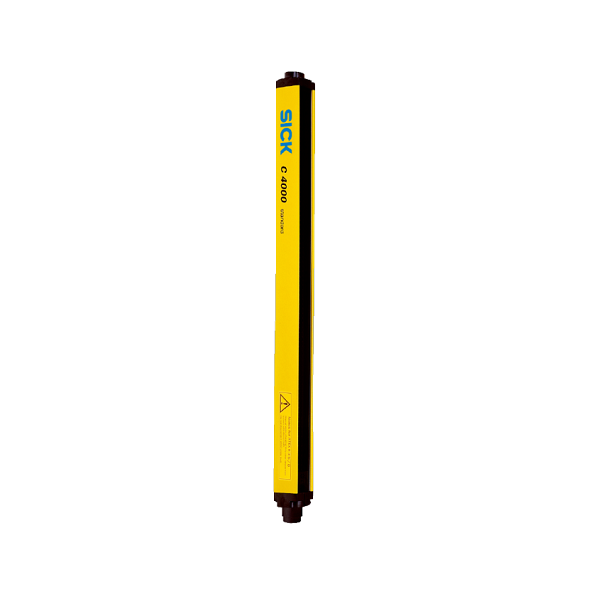

Manufacturer : SICK Sensors
Part Number : C40S-S147
Application : Explosive areas
Ex-approvals
ATEX for gas: II 3G Ex nA op is IIC T4 Gc X
ATEX for dust: II 3D Ex tc IIIC T135°C Dc
System part : Sender
Resolution : 20 mm
Protective field height : 1,350 mm
Scanning range : 21 m
Synchronization : Optical synchronisation
System connection : Hirschmann male connector M26, 12-pin
Direction of cable connection : Straight
Conductor cross section : 0.75 mm²
Permitted cable length : 50 m
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Shipping Weight : 3 kg
