Estimated Lead Time: 6 – 8 Weeks.

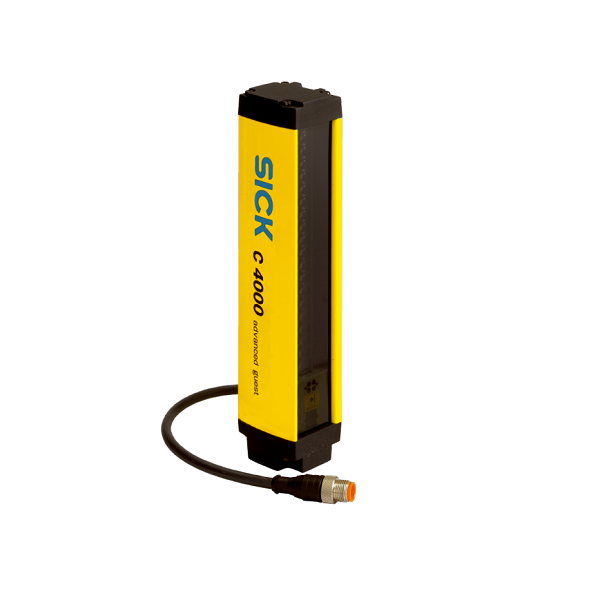

Manufacturer : SICK Sensors
Part Number : C46E-1003CU400
Application : Normal industrial environment
System part : Receiver
Resolution : 30 mm
Scanning range : 21 m
Protective field height : 1,050 mm
Response time : 12 ms
Synchronization : Optical synchronisation
Bypass : yes
Operating mode switching : yes
PSDI mode : yes
System connection : Fixed connection cable 320 mm with male connector M12, 8-pin
Direction of cable connection : Straight
Conductor cross section : 0.25 mm²
Permitted cable length : 3 m
Configuration method : PC with CDS (Configuration and Diagnostic Software) Via host device
Display elements : 7-segment display
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Weight : 2,280 g
Shipping Weight : 3.3 kg
