Estimated Lead Time : 6 – 8 weeks.

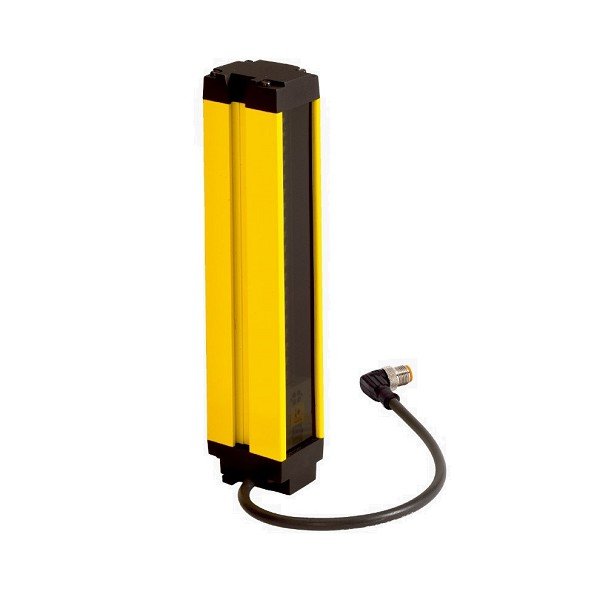

Manufacturer : SICK Sensors
Part Number : 1040199
Application : Normal industrial environment
System part : Sender
Resolution : 30 mm
Scanning range : 21 m
Protective field height : 1,350 mm
Synchronization : Optical synchronisation
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (EN ISO 13849)
Performance level : PL e (EN ISO 13849)
Protective operation : Yes
Restart interlock : Yes
External device monitoring (EDM) : Yes
Beam coding : Yes
Configurable scanning range : Yes
Fixed blanking : Yes
Floating blanking : Yes
Safe SICK device communication via EFI : Yes
System connection : Fixed connection cable 320 mm with male connector M12, 8-pin
Direction of cable connection : Straight
Conductor cross section : 0.25 mm²
Permitted cable length : 3 m 1)
Display elements : 7-segment display
Housing material : Aluminum extruded profile
Weight : 2,820 g
Shipping Weight : 3.82 kg
