Estimated Lead Time : 6 – 8 weeks
Manufacturer : SICK Sensors

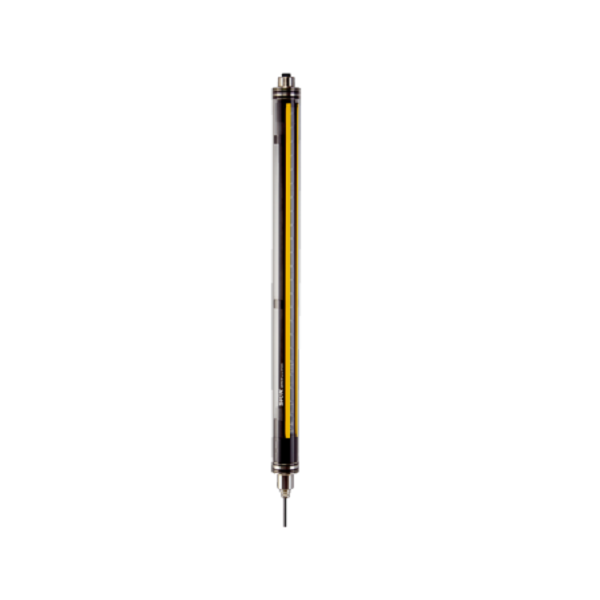

Part Number : C4C-EB18030A10000
Sub product family : deTec4 Core IP69K
Application : Areas with special hygiene requirements
System part : Receiver
Compatible sender : 1219059
Resolution : 30 mm
Scanning range : 12.5 m
Protective field height : 1,800 mm
Response time : 13 ms
No blind zones : Yes
Synchronization : Optical synchronisation
Items supplied :
Receiver in IP69K protective housing with connecting cable, 15 m
Test rod with diameter corresponding to the resolution of the safety light curtain
Safety instruction
Mounting instructions
Operating instructions for download
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Ripple : ≤ 10 %
Power consumption typical : 2.59 W (DC)
Output signal switching devices (OSSDs) :
Type of output : 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 1)
ON state, switching voltage HIGH : 24 V DC (VS – 2.25 V DC … VS)
OFF state, switching voltage LOW : ≤ 2 V DC
Current-carrying capacity per OSSD : ≤ 300 mA
Dimensions : See dimensional drawing
Material :
Protective housing : PMMA
End caps : Stainless steel 1.4404
Cable glands : Stainless steel 1.4404 including silicone seal
Compensating element (membrane) : PA 6
Shipping Weight : 3 kg
