Estimated Lead Time : 1 – 10 Working Days
Manufacturer : SICK Sensors

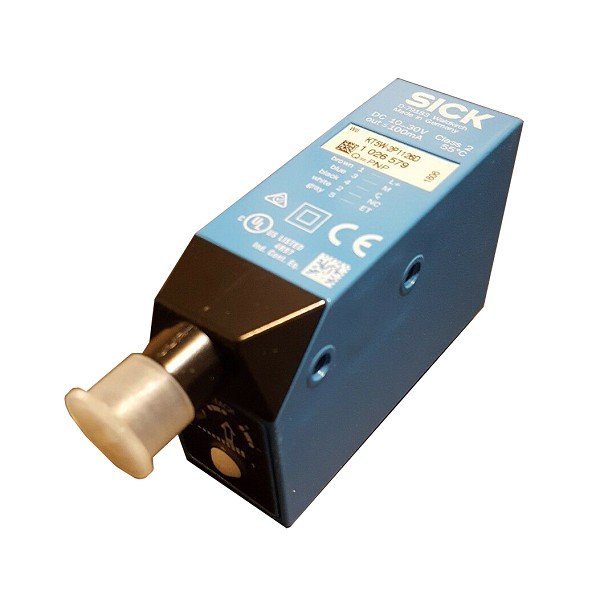

Product No : KT5W-2P1126
Product type : 1018587 Contrast Sensors
Sensing distance : 10 mm
Sensing distance tolerance : ± 3 mm
Housing design (light emission) : Rectangular
Light source : LED, RGB
Wave length : 470 nm, 525 nm, 640 nm
Light emission : Long and short side of housing, exchangeable
Light spot size : 1.2 mm x 4.2 mm
Light spot direction : Vertical
Adjustment : Teach-in button
Teach-in mode : Static 2-point teach-in
Supply voltage : 10 V DC … 30 V DC
Ripple : = 5 Vpp
Power consumption : < 80 mA Switching frequency : 10 kHz Response time : 50 µs Switching output : PNP Output current Imax. : 100 mA Time delay : 20 ms Connection type : Male connector M12, 5-pin Protection class : II Circuit protection : UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating : IP67 Housing material : Metal, Zinc diecast Dimensions (HxWxD), approx : 5.3cm x 3.04cm x 8cm Weight : 0.4 kg Shipping Weight : 1.5 Kg
