Estimated Lead Time: 6 – 8 weeks

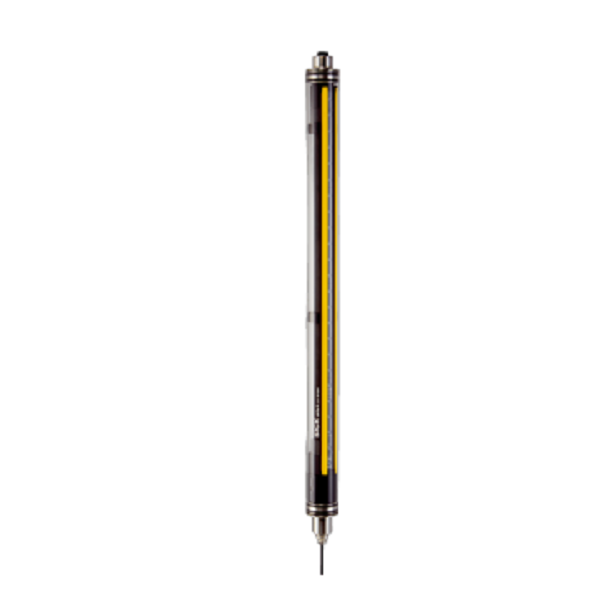

Manufacturer : SICK Sensors
Part Number : C4C-SB15030A10000
Sub product family : deTec4 Core IP69K
Application : Areas with special hygiene requirements
System part : Sender
Compatible receiver : 1219569
Resolution : 30 mm
Scanning range : 12.5 m
Protective field height : 1,500 mm
No blind zones : Yes
Synchronization : Optical synchronisation
Items supplied : Sender in IP69K protective housing with connecting cable, 15 m
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (ISO 13849-1)
Performance level : PL e (ISO 13849-1)
PFHD (mean probability of a dangerous failure per hour) : 3.7 x 10-9
TM (mission time) : 20 years (ISO 13849-1)
Safe state in the event of a fault : At least one OSSD is in the OFF state.
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Residual ripple : ≤ 10 %
Power consumption typical : 1.2 W (DC)
Dimensions : See dimensional drawing
Material :
Protective housing : PMMA
End caps : Stainless steel 1.4404
Cable glands : Stainless steel 1.4404 including silicone seal
Compensating element (membrane) : PA 6
Shipping Weight : 3 kg
