Estimated Lead Time : 6 – 8 weeks.

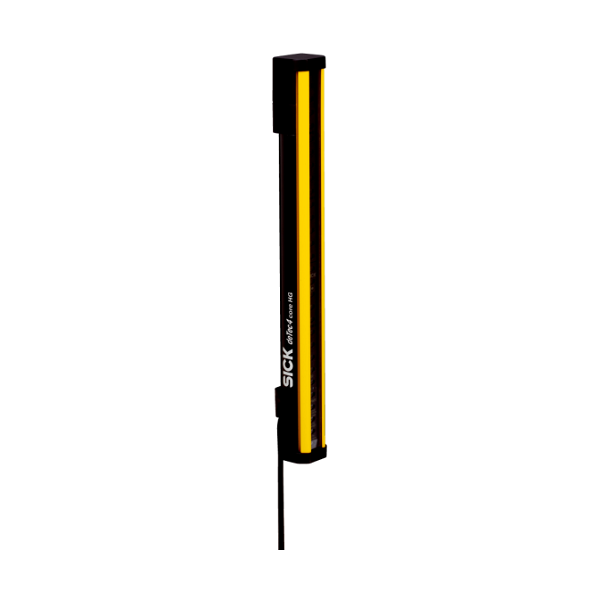

Manufacturer : SICK Sensors
Part Number : C4C-SG21010A10000
Sub product family : deTec4 Core HG
Application : Areas where coolants, lubricants and cleaning agents are used
System part : Sender
Compatible receiver : 1221103
Resolution : 14 mm
Scanning range : 10 m
Protective field height : 2,100 mm
No blind zones : Yes
Synchronization : Optical synchronisation
Items supplied : Sender
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (ISO 13849-1)
Performance level : PL e (ISO 13849-1)
PFHD (mean probability of a dangerous failure per hour) : 3.7 x 10-9
TM (mission time) : 20 years (ISO 13849-1)
Safe state in the event of a fault : At least one OSSD is in the OFF state
System connection : Male connector M12, 5-pin
Length of cable : 150 mm
Cable diameter : 4.3 mm
Stationary position : > 12 x cable diameter
Flexible use : > 15 x cable diameter
Display elements : LEDs
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Ripple : ≤ 10 %
Power consumption typical : 2.4 W (DC)
Dimensions : See dimensional drawing
Housing material : Aluminum extruded profile
Front screen material : Chemically prestressed float glass
Shipping Weight : 3 kg
