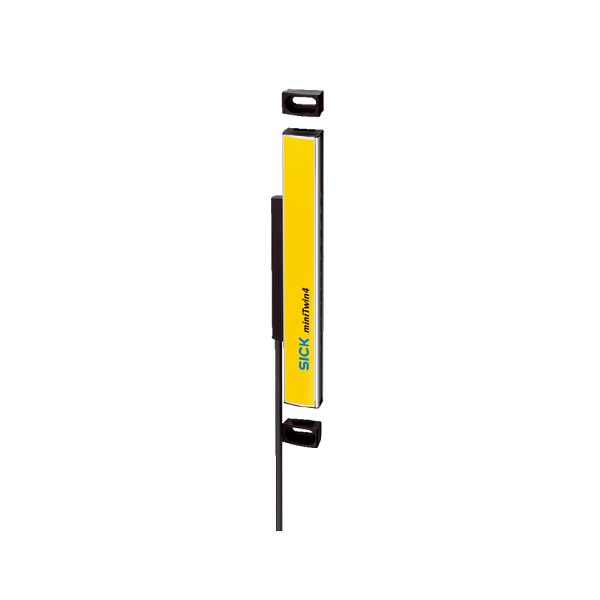

C4MT-10224ABB03FB0 SICK Sensors Safety light curtains miniTwin4/1 Twin-Sticks Part Number : 1207331

Estimated Lead Time : 6 – 8 weeks.

Manufacturer : SICK Sensors

Part Number : C4MT-10224ABB03FB0

System part : 1 Twin-Stick

Usage : miniTwin4 as a standalone device

Mounting system type: O-fix bracket

Resolution : 24 mm

Scanning range

Minimum : 0 m … 4 m

Typical : 0 m … 5 m

Protective field height 1,020 mm

Protective field height : 1,020 mm

Response time : ≤ 13 ms

Synchronization : Optical, without separate synchronization

Items supplied

Twin stick

System plug

O-Fix bracket, 2 pieces

Test rod with diameter corresponding to the resolution of the safety light curtain

Safety instruction

Mounting instructions

Operating instructions for download

System connection : Male connector M12, 5-pin

Length of cable : 700 mm

Conductor cross section : 0.34 mm²

Permitted cable length : ≤ 20 m

Configuration method : Hard wired

Display elements : LED

Output signal switching devices (OSSDs)

Type of output : PNP semiconductors, short-circuit protected, cross-circuit monitored 3)

ON state, switching voltage HIGH : 24 V DC (VS – 2.25 V DC … VS)

OFF state, switching voltage LOW : ≤ 2 V DC

Current-carrying capacity per OSSD : ≤ 300 mA

Housing cross-section (incl. system connection) : 15 mm x 32 mm

Housing material Aluminum alloy ALMGSI : 0.5

Weight : 360 g

Shipping Weight : 1.4 kg
