Estimated Lead Time : 6 – 8 weeks.

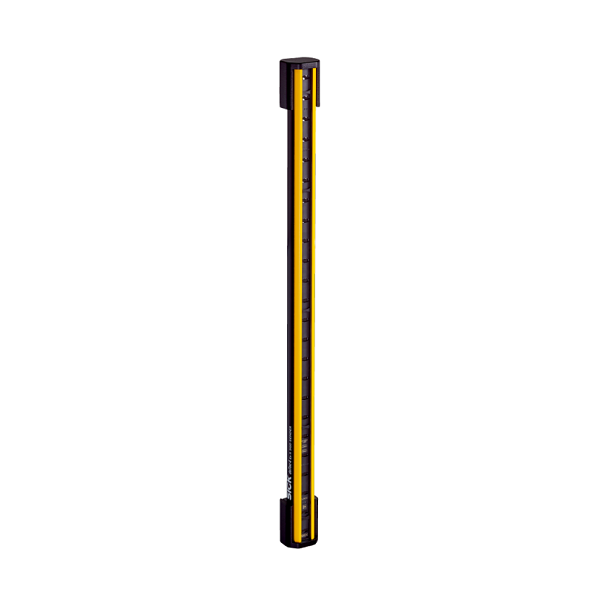

Manufacturer : SICK Sensors
Part Number : C4P-SX18031A00
Sub product family : deTec4 Ex II 3GD
Application : Explosive areas
Ex-approvals : ATEX for gas: II 3G Ex ec op is IIC T4 Gc , ATEX for dust: II 3D Ex tc IIIC T135°C Dc
System part : Sender
Resolution : 30 mm
Scanning range : 30 m
Protective field height : 1,800 mm
No blind zones : Yes
Synchronization : Optical synchronisation
Integrated laser alignment aid : yes
Items supplied : Sender
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (ISO 13849-1)
Performance level : PL e (ISO 13849-1)
PFHD (mean probability of a dangerous failure per hour) : Single system (standalone) 15.3 x 10-9
Cascade with one guest : 30.5 x 10-9
Cascade with two guest devices : 45.6 x 10-9
TM (mission time) : 20 years (ISO 13849-1)
Safe state in the event of a fault : At least one OSSD is in the OFF state.
System connection : Depending on system plug (M12 male connector, 5-pin or 8-pin)
Extension connection : Depending on system plug (without extension connection or with M12 female connector, 5-pin)
Configuration method : DIP switch on system plug
Display elements : LEDs
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Ripple : ≤ 10 %
Power consumption typical : 1.97 W (DC)
Dimensions : See dimensional drawing
Housing material : Aluminum extruded profile
Shipping Weight : 3 kg
