Estimated Lead Time : 6 – 8 weeks.

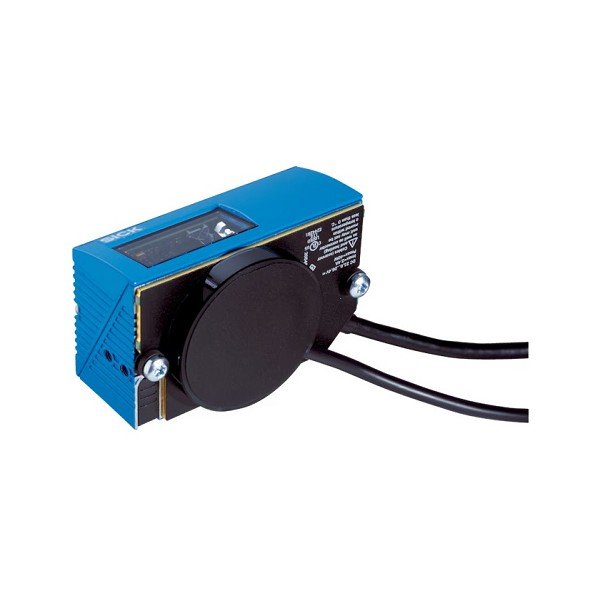

Manufacturer : SICK Sensors
Part Number : CLV630-1000F0
Task : Identifying – 1D code
Version : Long Range
Connection type : Cable
Reading field : Front
Sensor type : Raster scanner
Optical focus : Fixed focus
Light source : Light spot, laser, Visible, Red, 655 nm
Light spot : Circular
Laser class : 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle : ≤ 50°
Reading distance : 60 mm … 735 mm
Scanning frequency : 400 Hz … 1,200 Hz
Code resolution : 0.35 mm … 1 mm
Raster height, number of lines, at distance : 15 mm, 8, 200 mm
Connection type :
1 x 15-pin D-Sub HD male connector (0.9 m)
1 x cable, open-ended, 3-wire (2 m)
Supply voltage : ≤ 24 V DC, ± 10 %
Power consumption : 40 W
Housing : Aluminum die cast
Housing color : Light blue (RAL 5012)
Window material : Glass
Enclosure rating : IP65 (EN 60529)
Protection class : III (EN 61140)
Dimensions (L x W x H) : 61 mm x 96 mm x 50 mm
Weight : 520 g, with connecting cable
Shipping Weight : 1.5 kg
